Front Body C

WARNING: This page is about a different variant/trim than selected.

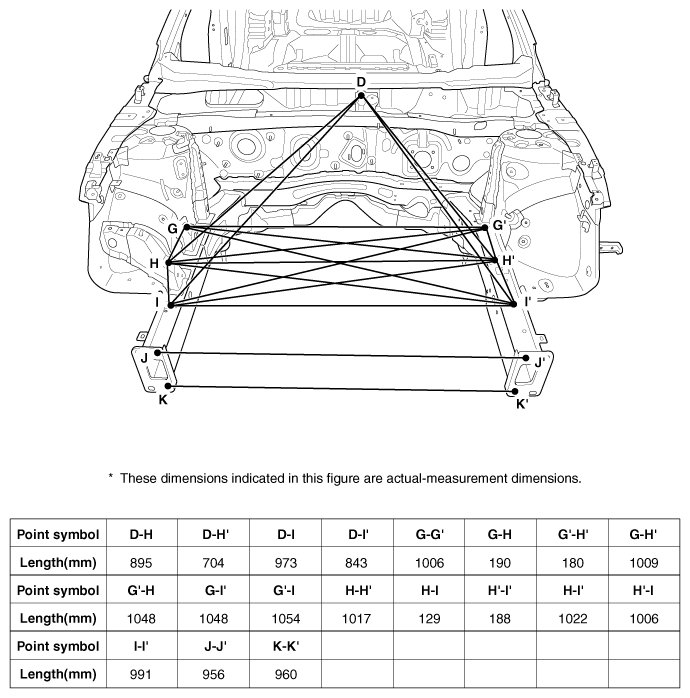

Fig 1: Identifying Front Body C Dimensions (1 Of 2)
G10589434Courtesy of HYUNDAI MOTOR AMERICA

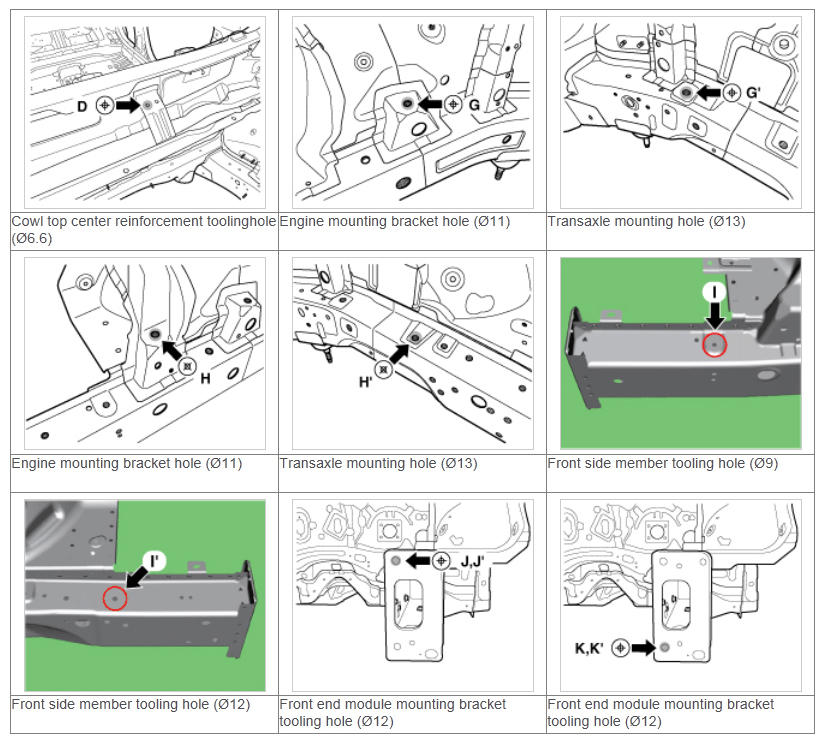

Fig 2: Identifying Front Body C Dimensions (2 Of 2)
G10589435Courtesy of HYUNDAI MOTOR AMERICA
