Front Body B

WARNING: This page is about a different variant/trim than selected.

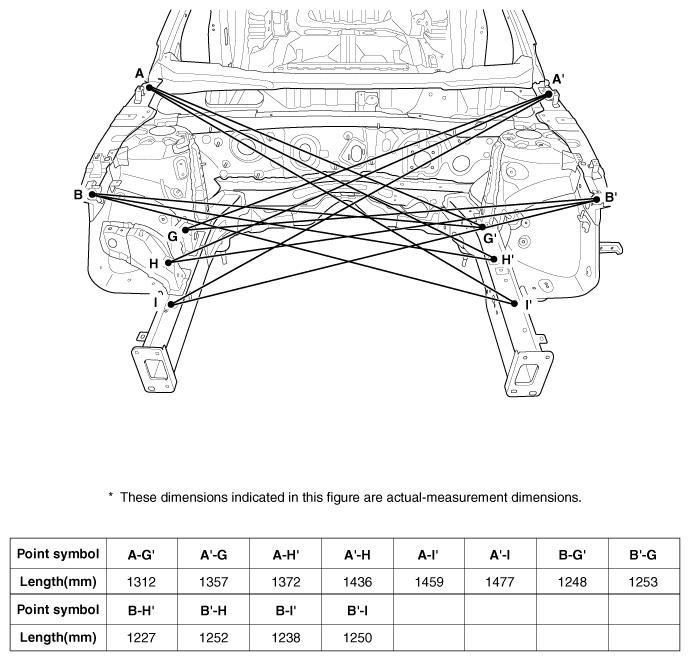

Fig 1: Identifying Front Body B Dimensions (1 Of 2)
G10589432Courtesy of HYUNDAI MOTOR AMERICA

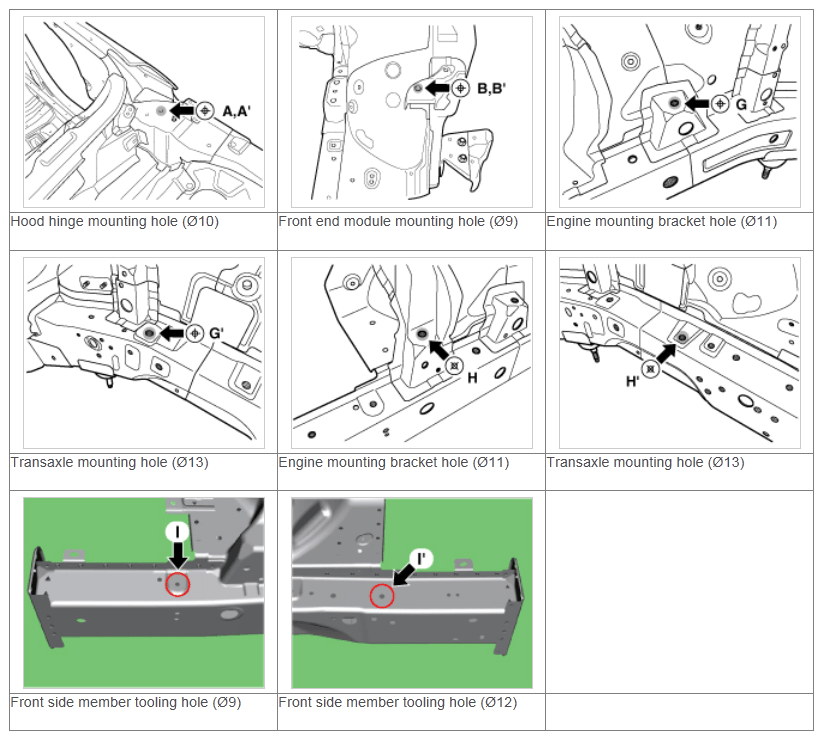

Fig 2: Identifying Front Body B Dimensions (2 Of 2)
G10589433Courtesy of HYUNDAI MOTOR AMERICA
