Front Body A

WARNING: This page is about a different variant/trim than selected.

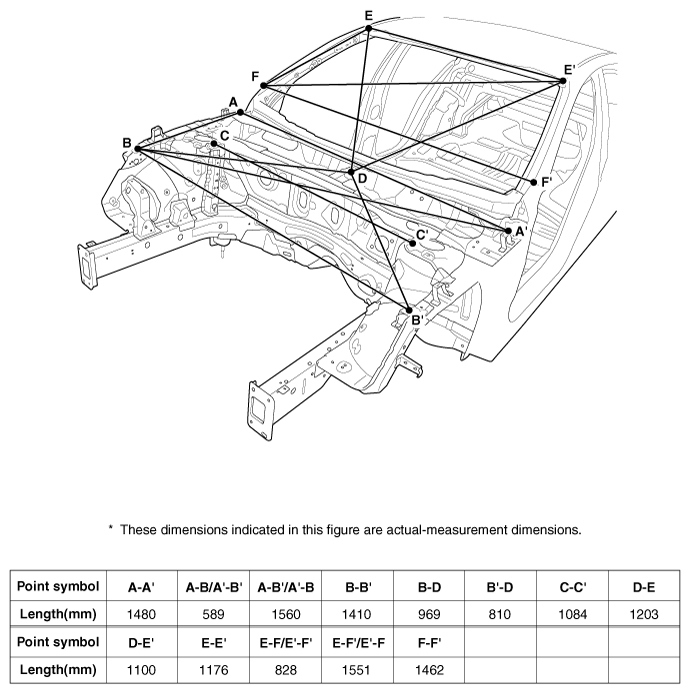

Fig 1: Identifying Front Body A Dimensions (1 Of 2)
G10589430Courtesy of HYUNDAI MOTOR AMERICA

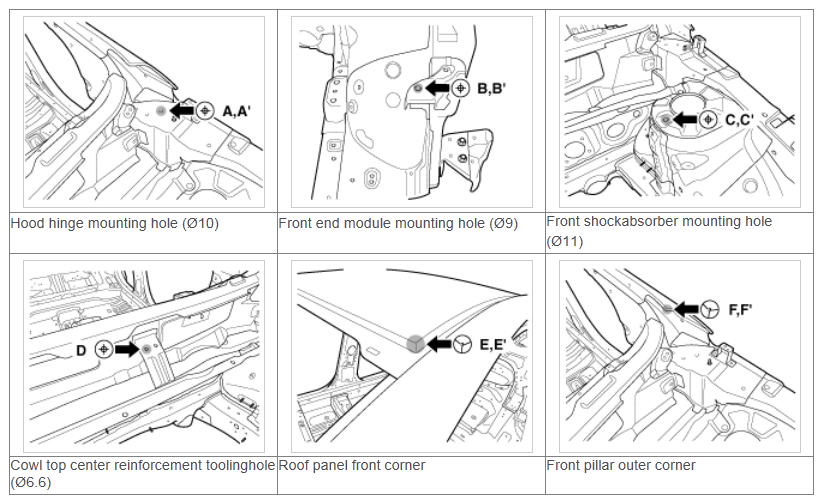

Fig 2: Identifying Front Body A Dimensions (2 Of 2)
G10589431Courtesy of HYUNDAI MOTOR AMERICA
