Section 82 (Hydraulic System (HEV))
>>
Valve Body
>>
Components and Components Location
>>
Component Location
>>
Valve Body Flow
Valve Body Flow
WARNING:
This page is about a different variant/trim than selected.

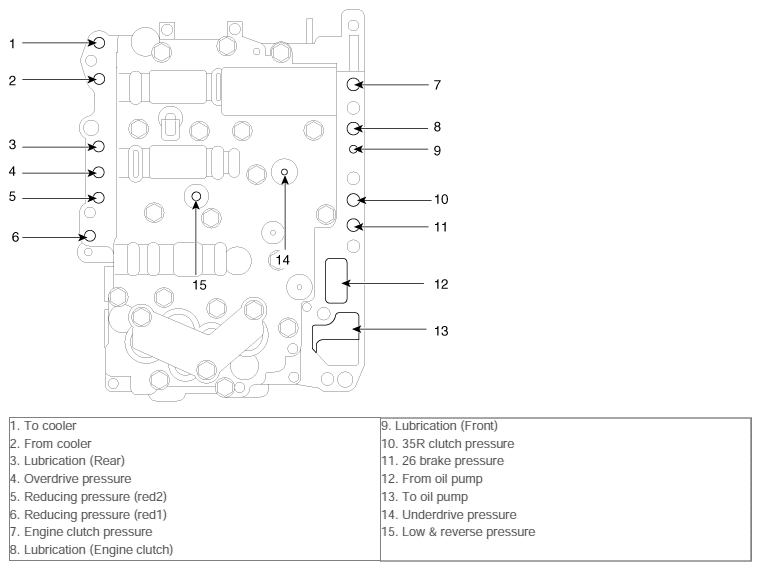

Fig 1: Valve Body Flow Diagram
Courtesy of HYUNDAI MOTOR AMERICA
