Section 82 (Hydraulic System (HEV))
>>
Electric Oil Pump (EOP)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

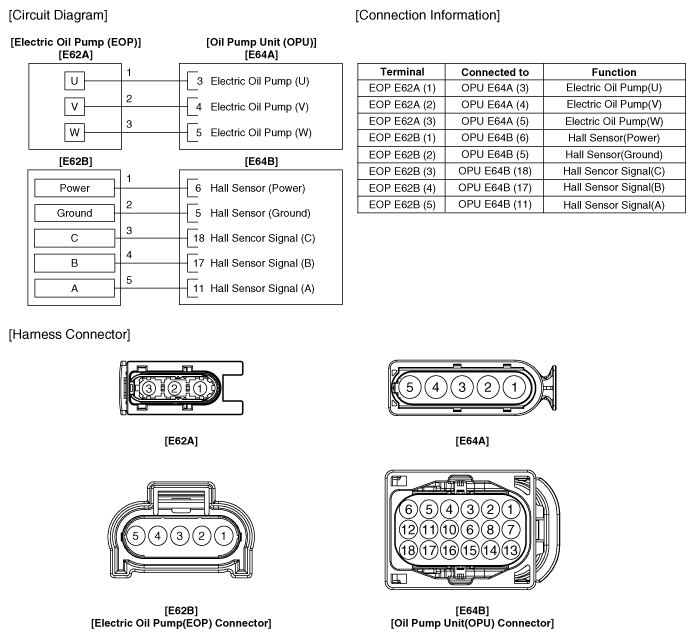

Fig 1: Electric Oil Pump Circuit Diagram & Connector End Views
Courtesy of HYUNDAI MOTOR AMERICA
