Section 82 (Hydraulic System (HEV))
>>
Electric Oil Pump (EOP)
>>
Repair Procedures
>>
Inspection
>>
Process Of HEV EOP Inspection Using GDS
Process Of HEV EOP Inspection Using GDS
WARNING:
This page is about a different variant/trim than selected.

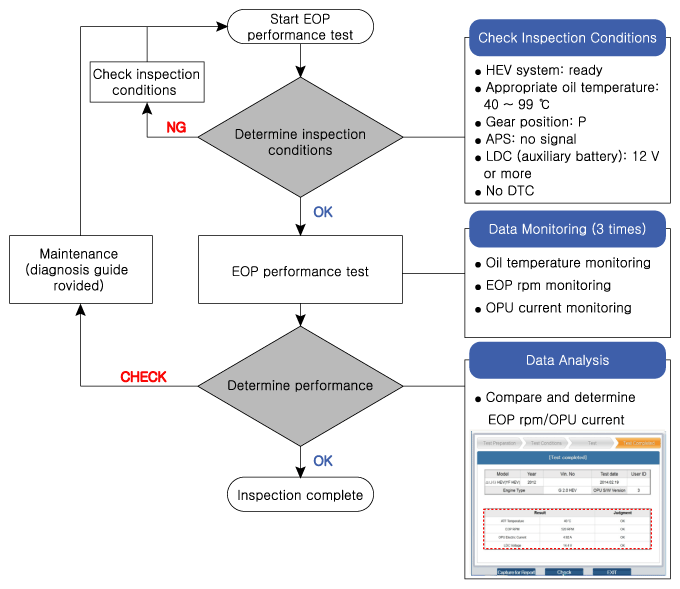

Fig 1: EOP Inspection Flow Chart
Courtesy of HYUNDAI MOTOR AMERICA
