Inspection Procedures

1. Connect VCI data cable to self-diagnosis connector located at the bottom part of driver seat crash pad.
2. Start the engine and turn on VCI.
3. Select the name of vehicle type from GDS equipment screen.
4. Start the Electric Oil Pump (EOP) Test.

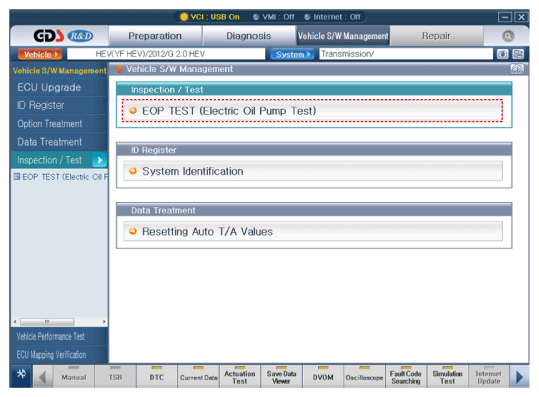

   Fig 1: Screen Display - Electric Oil Pump (EOP) Test

   Courtesy of HYUNDAI MOTOR AMERICA
5. Check the inspection conditions (inspection conditions should be met in order for safe and close performance test).
   1. Test preparation step on inspection conditions screen.

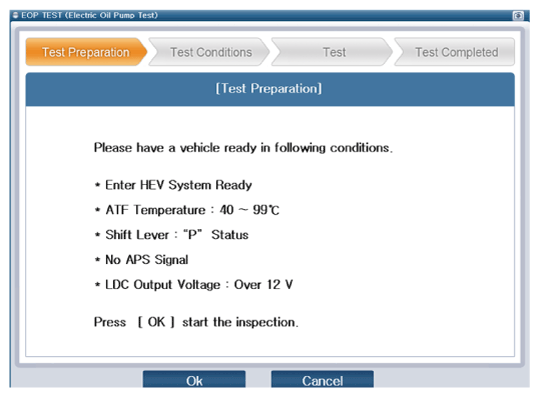

      Fig 2: Screen Display - Test Preparation

      Courtesy of HYUNDAI MOTOR AMERICA
   2. Test preparation step inspection condition results screen.

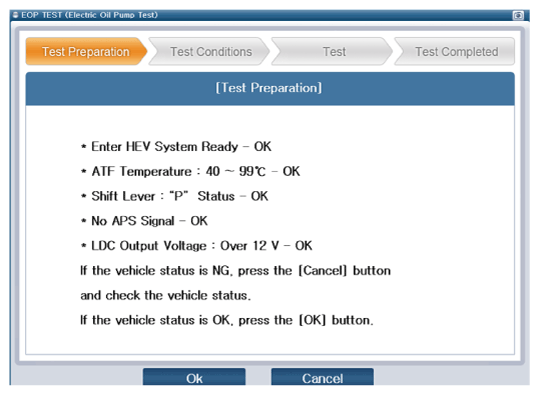

   Fig 3: Screen Display - Test Preparation

   Courtesy of HYUNDAI MOTOR AMERICA
6. Search for fault code relevant to electric oil pump (EOP). If there is DCT, conduct performance test after inspecting fault code.

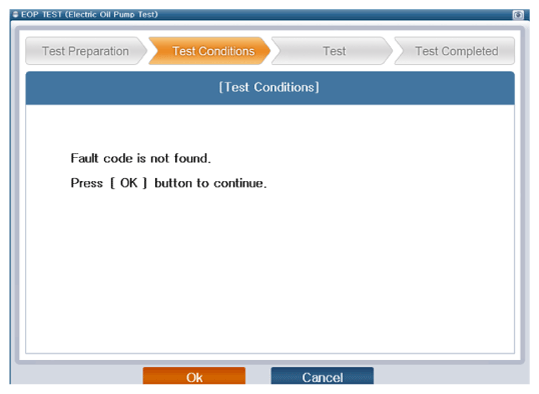

   Fig 4: Screen Display - Test Condition

   Courtesy of HYUNDAI MOTOR AMERICA
7. Conduct EOP performance test.

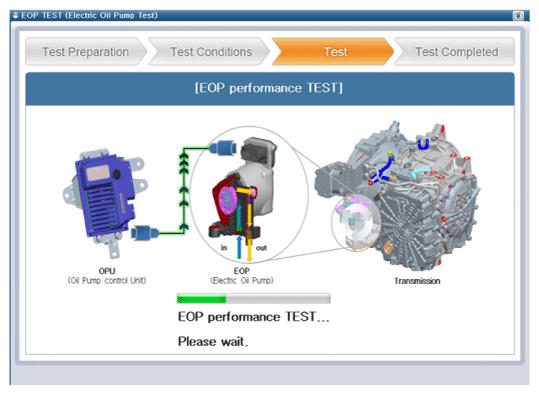

   Fig 5: Screen Display - EOP Performance Test

   Courtesy of HYUNDAI MOTOR AMERICA
8. When test results are determined as "OK", complete the inspection.

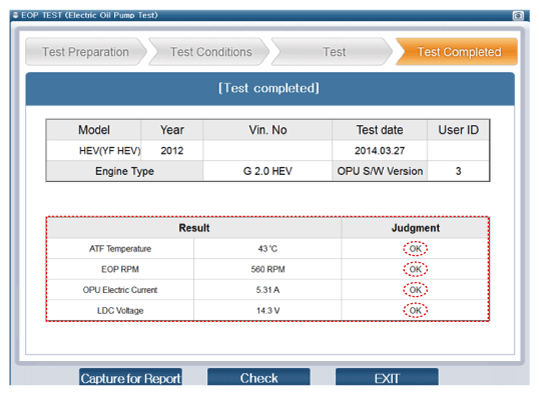

   Fig 6: Screen Display - Test Completed

   Courtesy of HYUNDAI MOTOR AMERICA
9. When test results are determined as "Check", inspect following items below.

Fig 7: Screen Display - Test Completed

Courtesy of HYUNDAI MOTOR AMERICA

Items to check when the results of electric oil pump (EOP) performance test are determined as "Check"

1. Check the ROM version of oil pump unit (OPU) (check from the "EOP Test completed" screen).
   1. Case 1 (speed control)

      Vehicle type: YF HEV 11/12MY

      ROM version 01, 02, 03, 04

   2. Case 2 (power control)

      Vehicle type: YF HEV 13MY ~ HG HEV

      ROM version 10, 11, 12

2. Conduct inspection on EOP power side (3 pin) connector and conduct resistance inspection.
   1. Measure the resistance on terminal U-W, U-V, V-W (16 ~ 30 m)
   2. Check for loose, damaged connector and inflow of foreign substance.
   Fig 8: Identifying EOP Terminals

   Courtesy of HYUNDAI MOTOR AMERICA
3. Check for rotor abrasion (ROM version 01, 02) (check from the "EOP Test completed" screen).
   1. In case of YF 11/12MY ROM version 01 and 02.
   2. EOP RPM is determined as normal. When OPU electric current value is shown as "Check", improve driving comfort of #271 YF HEV (change OPU ROM version 03).
   3. Check for OPU ROM version 03 and fault code

      P1777 OPU power control circuit operates abnormal.

   4. Conduct inspection on EOP rotor.
4. Check for loose OPU connector (B-5 pin, A-18 pin).
   1. Check for loose and damaged connector.
   2. Check for any terminal pushed back, damaged wiring and inflow of foreign substance.
   Fig 9: Identifying OPU Connector Locations

   Courtesy of HYUNDAI MOTOR AMERICA
5. Inspect the electric circuit of electronic oil pump (EOP).
   1. Inspect SD233-1 Electronic Oil Pump system engine room fuse & relay box.
6. Reconduct EOP performance test.
   1. Conduct inspection on item No. 1 ~ 5. Then, reconduct EOP performance test.
