Section 81 (Automatic Transaxle Control System (HEV))
>>
SS-B Solenoid Valve (ON/OFF)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

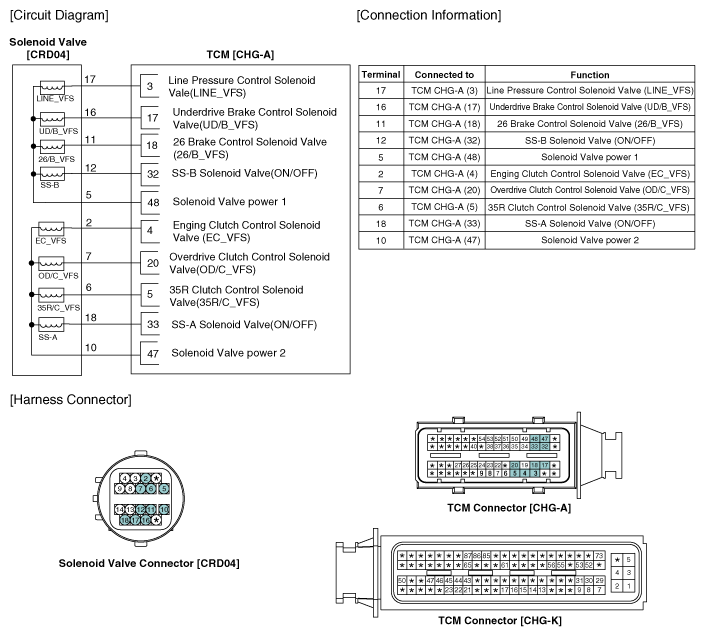

Fig 1: Solenoid Valve Circuit Diagram With Connector End Views
Courtesy of HYUNDAI MOTOR AMERICA
