Section 81 (Automatic Transaxle Control System (HEV))
>>
Inhibitor Switch
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

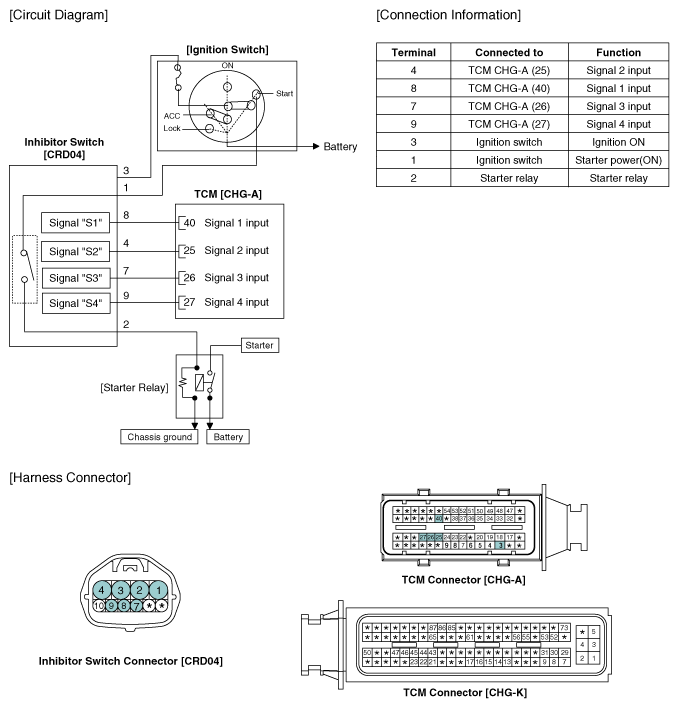

Fig 1: Inhibitor Switch Circuit Diagram With Connector End Views
Courtesy of HYUNDAI MOTOR AMERICA
