[Transaxle Installation Component]

WARNING: This page is about a different variant/trim than selected.

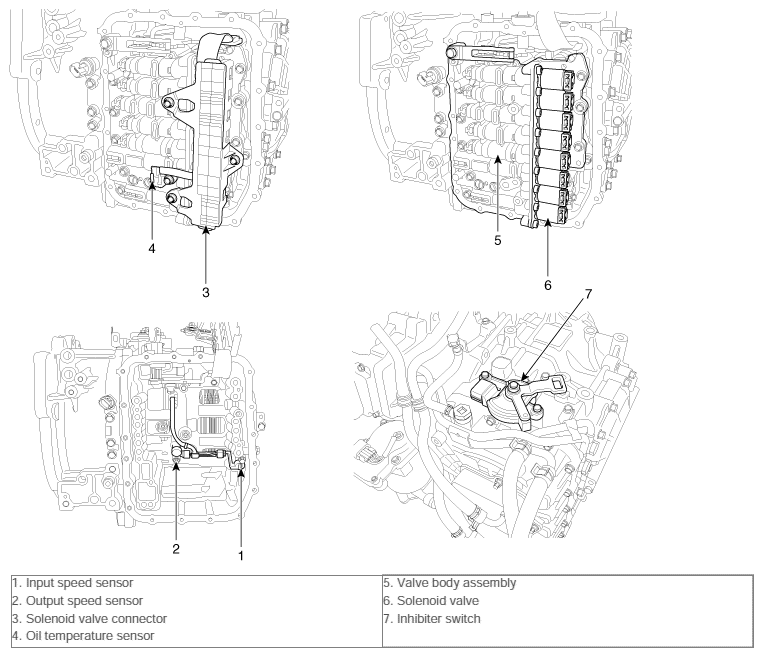

Fig 1: Identifying Automatic Transaxle Inhibitor Switch, Sensors, Solenoid Valve & Valve Body Assembly
G10588807Courtesy of HYUNDAI MOTOR AMERICA
