Diagnostic Diagram

WARNING: This page is about a different variant/trim than selected.

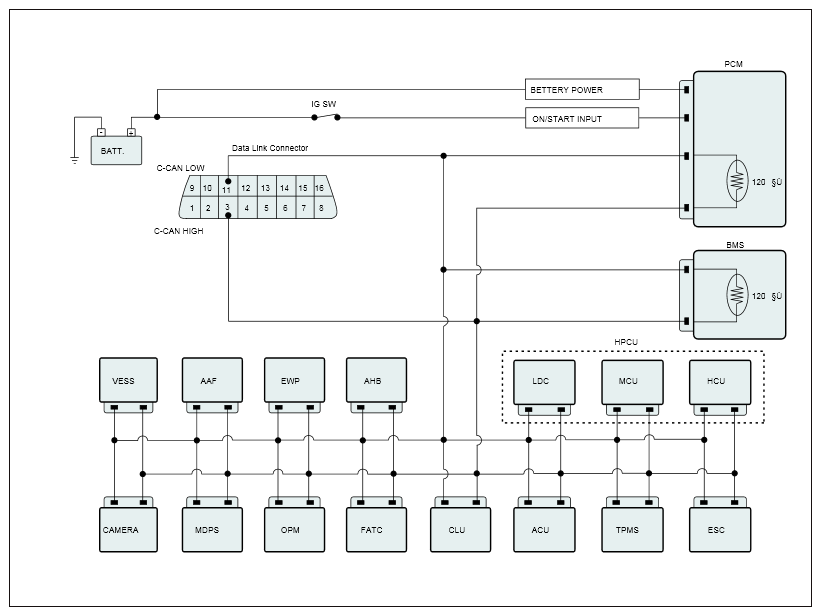

Fig 1: HPCU Circuit Diagram
G10591019Courtesy of HYUNDAI MOTOR AMERICA

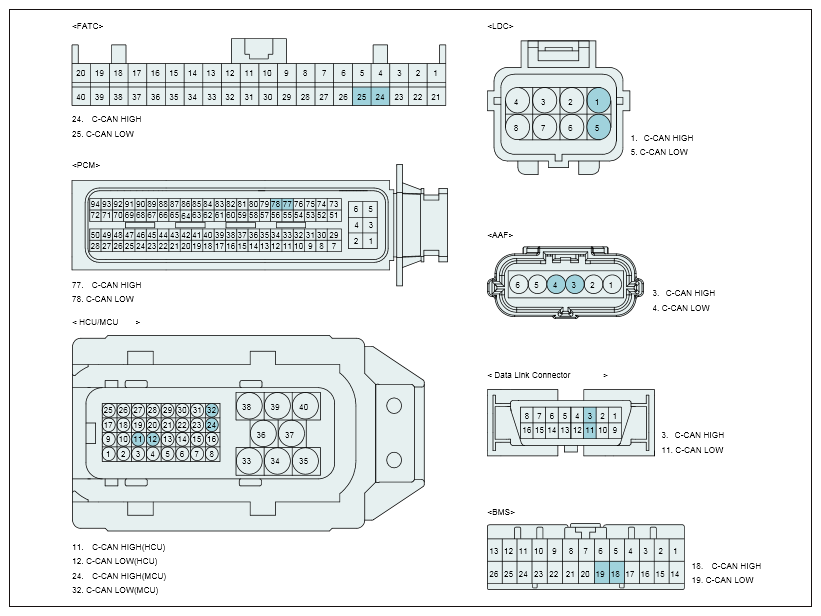

Fig 2: LDC Connector Terminals
G10591020Courtesy of HYUNDAI MOTOR AMERICA
