Section 80 (Active Air Flap Diagnosis (HEV))
>>
DTC U0298: Lost Communication with DC to DC Converter Control Module
>>
General Information
>>
CAN Signal: High & Low
CAN Signal: High & Low
WARNING:
This page is about a different variant/trim than selected.

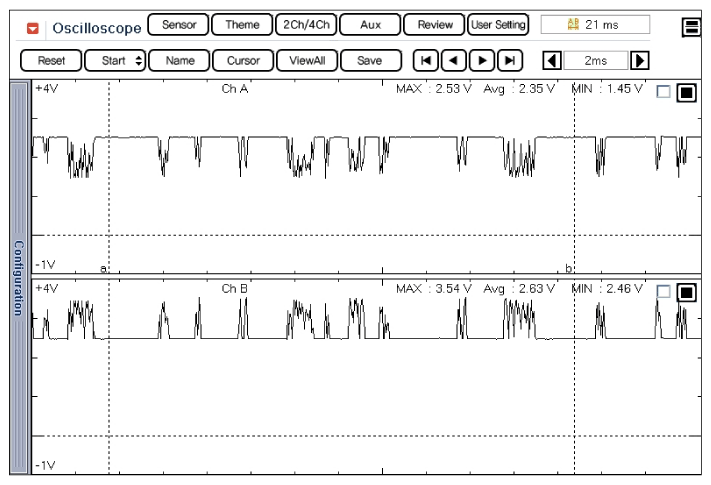

Fig 1: Screen Display - CAN Signal High And Low Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
