Diagnostic Diagram

WARNING: This page is about a different variant/trim than selected.

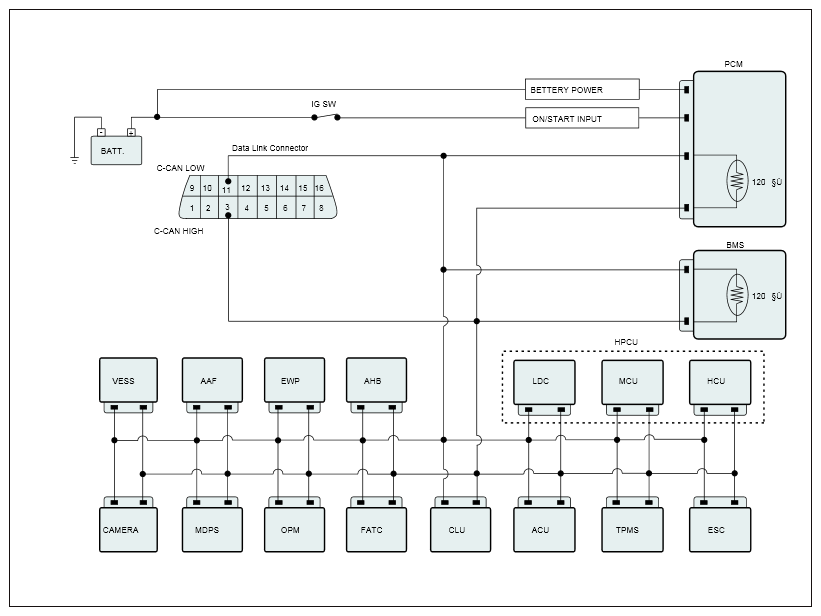

Fig 1: HPCU Circuit Diagram
G10591011Courtesy of HYUNDAI MOTOR AMERICA

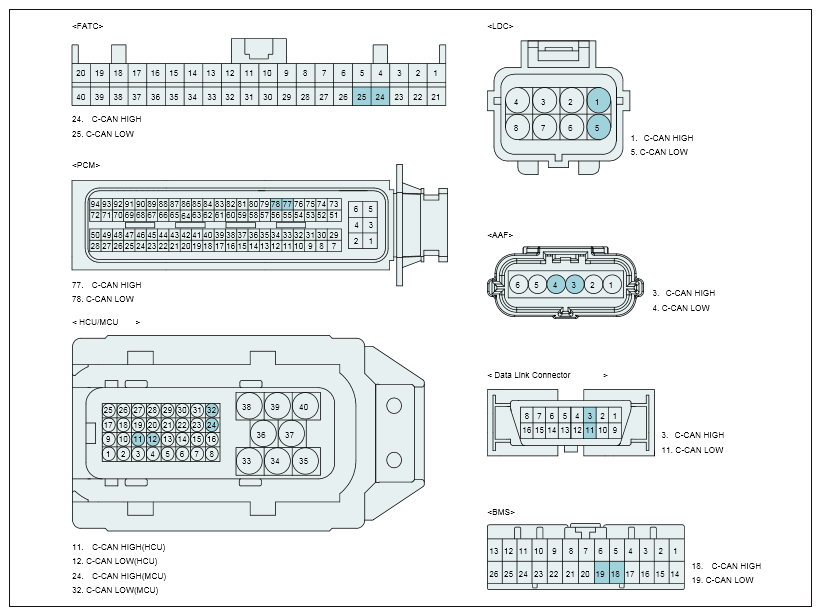

Fig 2: HCU/MCU Connector Terminals
G10591012Courtesy of HYUNDAI MOTOR AMERICA
