Section 80 (Active Air Flap Diagnosis (HEV))
>>
DTC U0293: Lost Communication With Hybrid Powertrain Control Module (C-CAN)
>>
General Information
>>
Components Location
Components Location
WARNING:
This page is about a different variant/trim than selected.

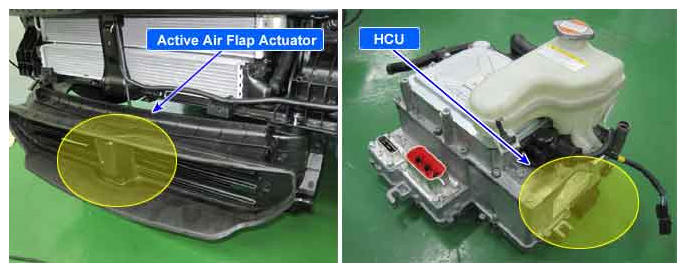

Fig 1: Active Air Flap Actuator And HCU Components Location
Courtesy of HYUNDAI MOTOR AMERICA
