Diagnostic Diagram

WARNING: This page is about a different variant/trim than selected.

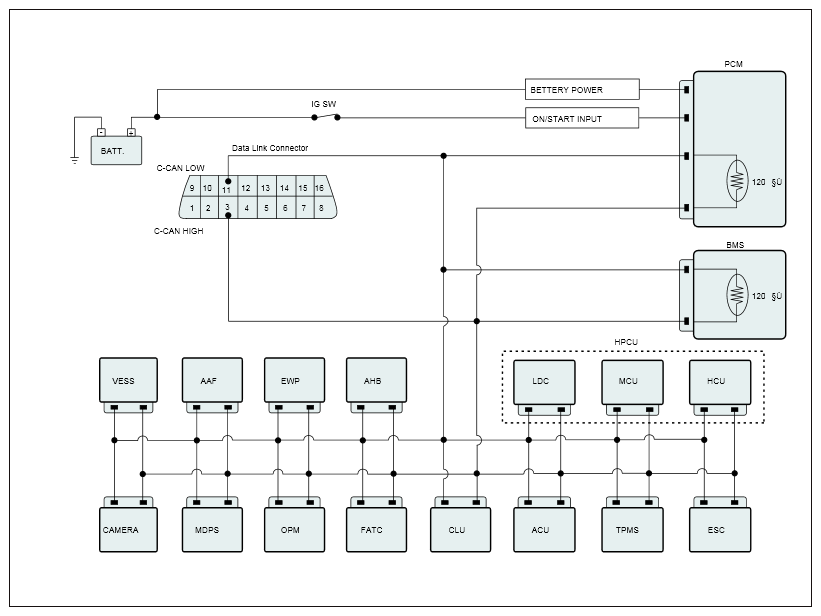

Fig 1: PCM Circuit Diagram
G10590991Courtesy of HYUNDAI MOTOR AMERICA

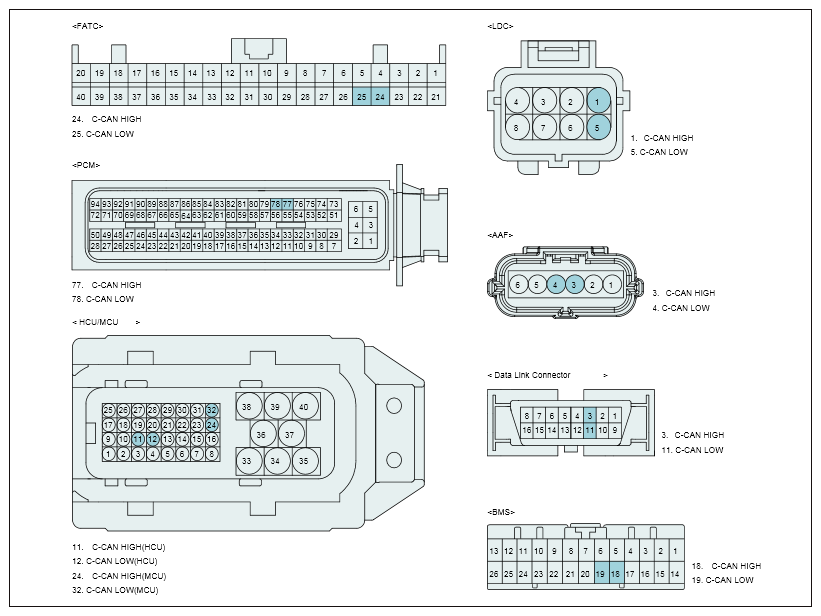

Fig 2: PCM Connector Terminals
G10590992Courtesy of HYUNDAI MOTOR AMERICA
