Diagnostic Diagram

WARNING: This page is about a different variant/trim than selected.

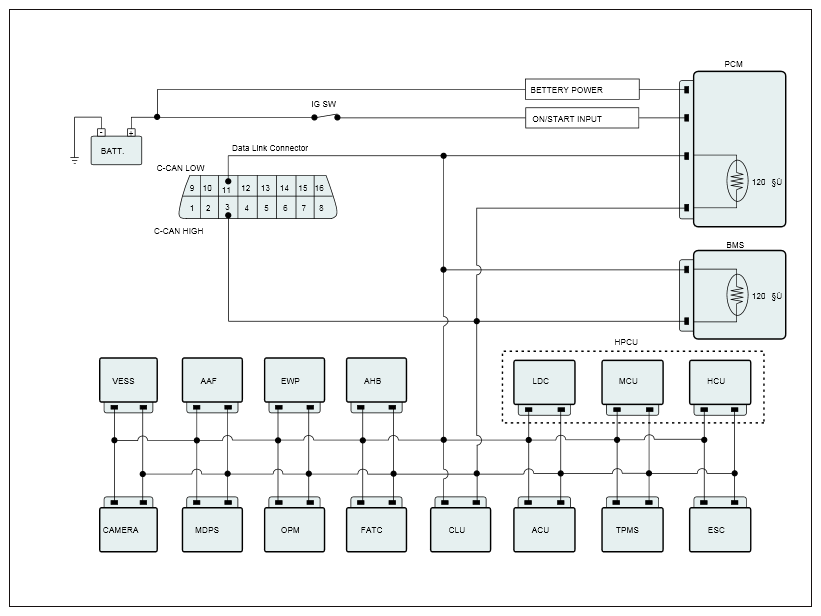

Fig 1: Data Link Connector Circuit Diagram
G10590975Courtesy of HYUNDAI MOTOR AMERICA

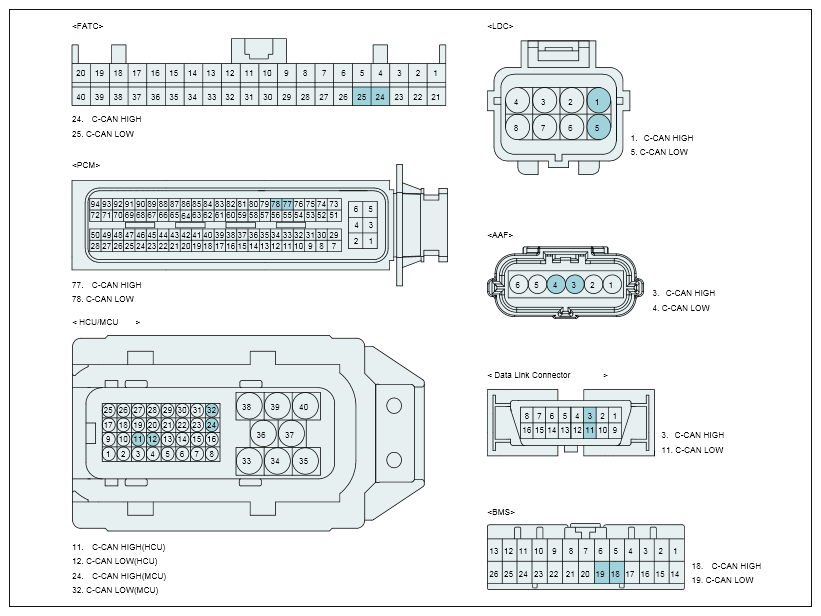

Fig 2: AAF Connector Terminals
G10590976Courtesy of HYUNDAI MOTOR AMERICA
