Section 80 (Active Air Flap Diagnosis (HEV))
>>
DTC U0100: Lost Communication With ECM/PCM 'A' (C-CAN)
>>
General Information
>>
Components Location
Components Location
WARNING:
This page is about a different variant/trim than selected.

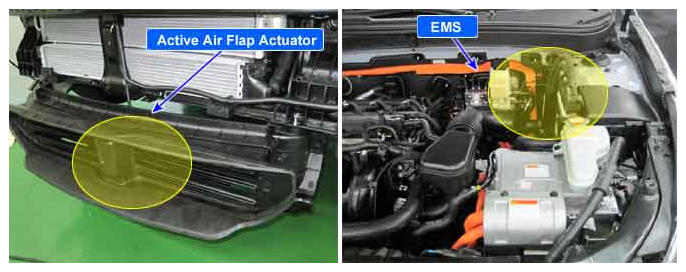

Fig 1: Active Flap Actuator And EMS Components Location
Courtesy of HYUNDAI MOTOR AMERICA
