Diagnostic Diagram

WARNING: This page is about a different variant/trim than selected.

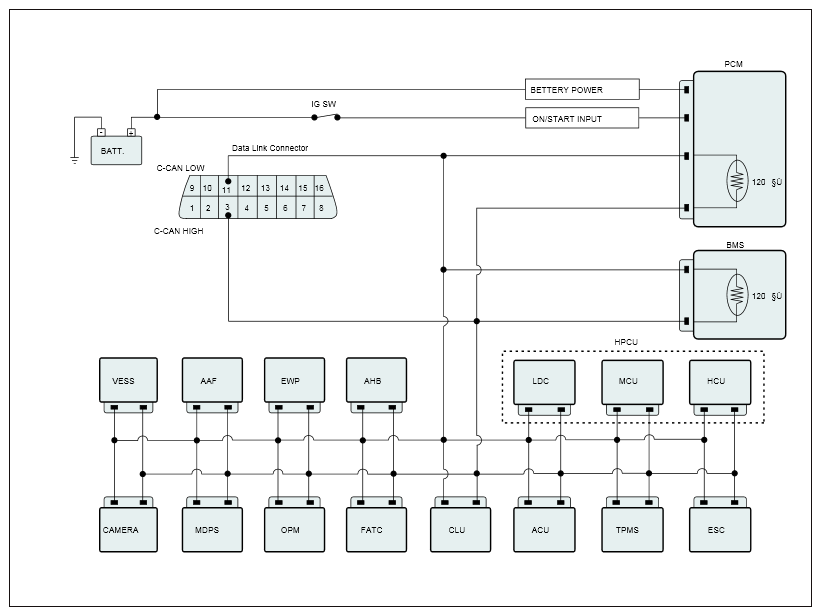

Fig 1: HPCU Circuit Diagram
G10590965Courtesy of HYUNDAI MOTOR AMERICA

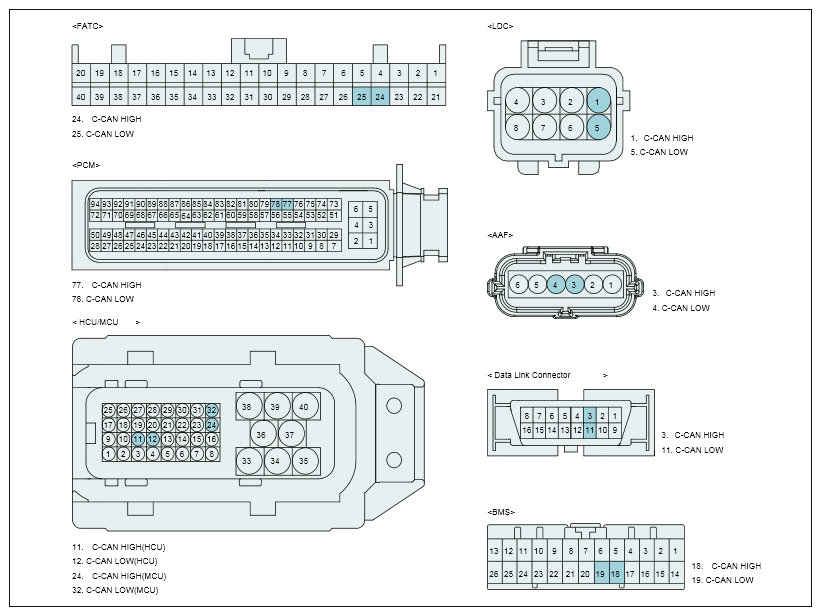

Fig 2: Data Link Connector Terminals
G10590966Courtesy of HYUNDAI MOTOR AMERICA
