Monitor Scantool Data 2

WARNING: This page is about a different variant/trim than selected.
  1. IG "ON"
  2. Select Current Data in the "AAF" (Active Air Flap).
  3. Check current after maintaining EV mode and Engine idle status.

    Active Air Flap Status -->  Close Or Open

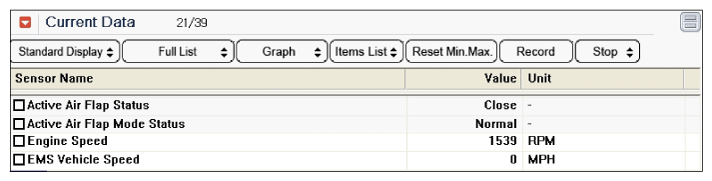

    Fig 1: Screen Display - Current Data
    G10590950Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the displayed current output normal?

    YES

    • Fault is intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and Active Air Flap Actuator memory is not cleared yet. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.

    NO
