Diagnostic Diagram

WARNING: This page is about a different variant/trim than selected.

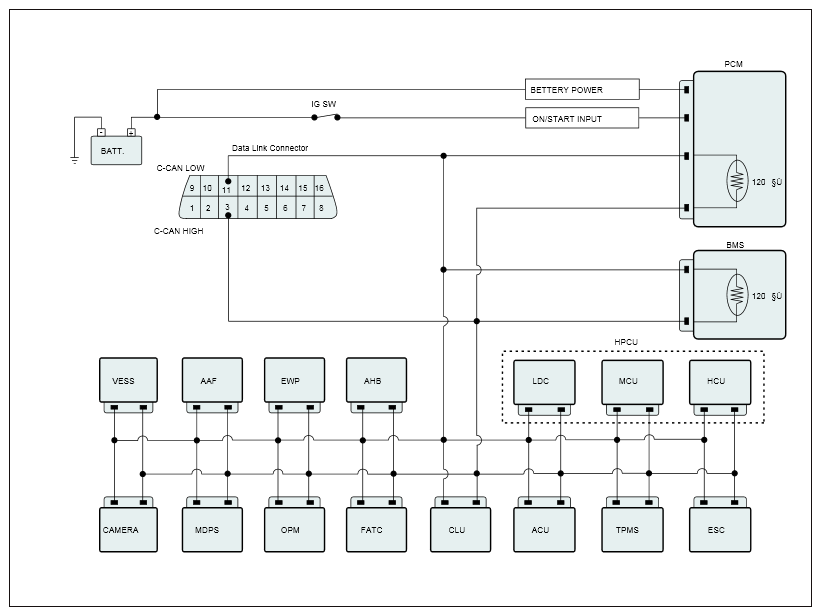

Fig 1: PCM Circuit Diagram
G10590948Courtesy of HYUNDAI MOTOR AMERICA

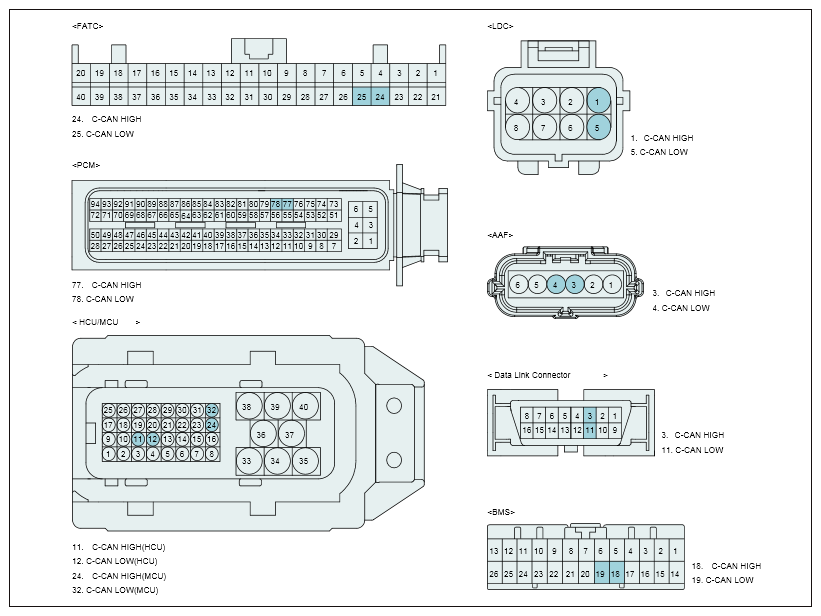

Fig 2: AAF Connector Terminals
G10590949Courtesy of HYUNDAI MOTOR AMERICA
