Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

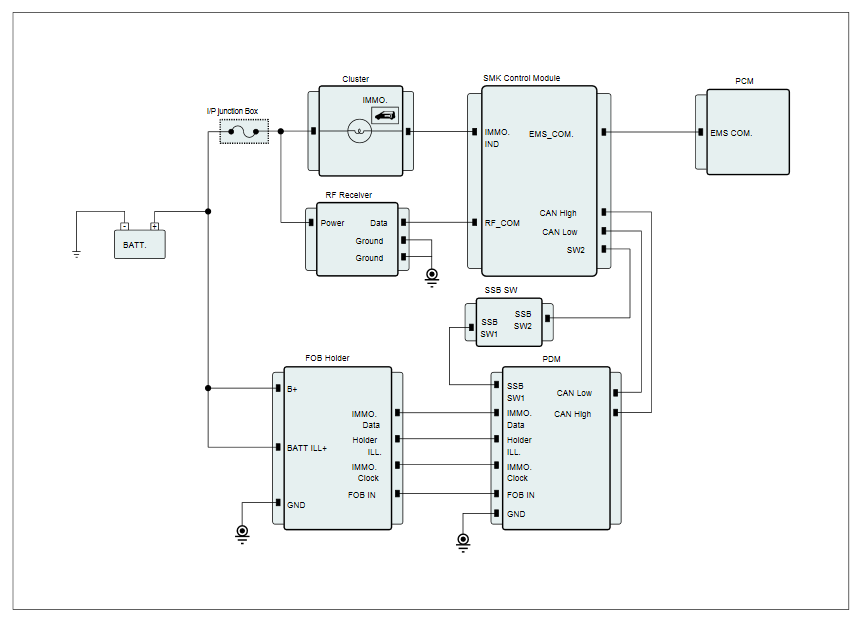

Fig 1: FOB Holder, PCM & SMK Control Module Diagnostic Circuit Diagram
G10603212Courtesy of HYUNDAI MOTOR AMERICA

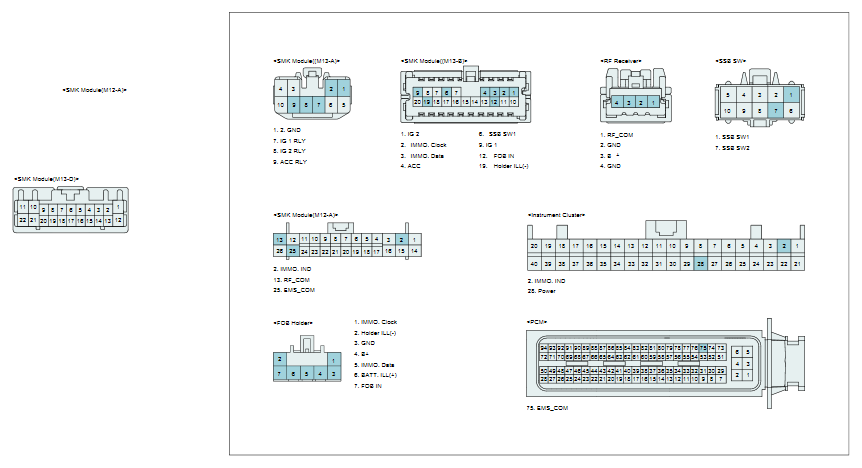

Fig 2: FOB Holder, PCM, Instrument Cluster & SMK Module Connector End Views
G10603213Courtesy of HYUNDAI MOTOR AMERICA
