Signal Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

IG KEY OFF.
Disconnect Engine PCM connector.
IG KEY "ON".
Measure voltage between signal terminal of PCM harness connector and chassis ground.
Specification : About 12V

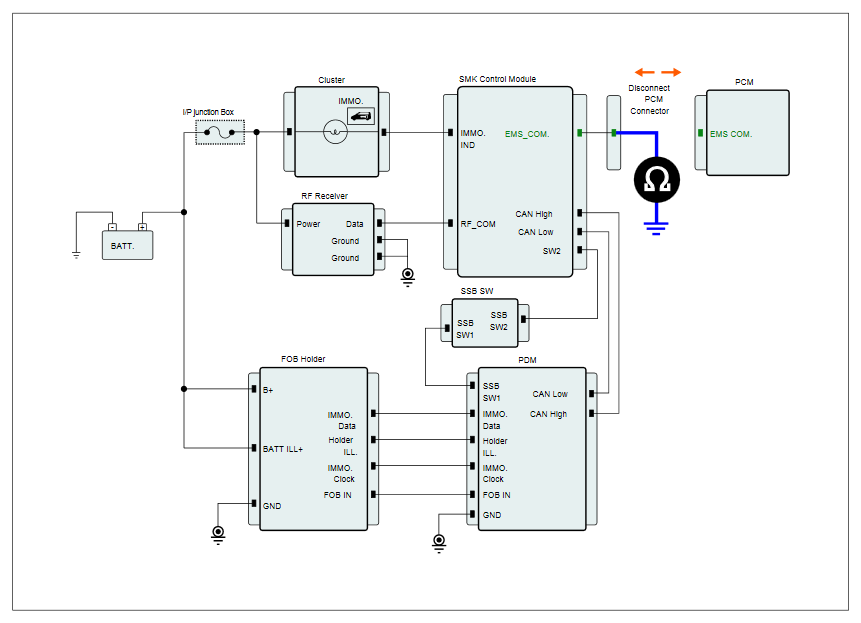

Fig 1: Measuring Voltage Between PCM Harness Signal Terminal And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA

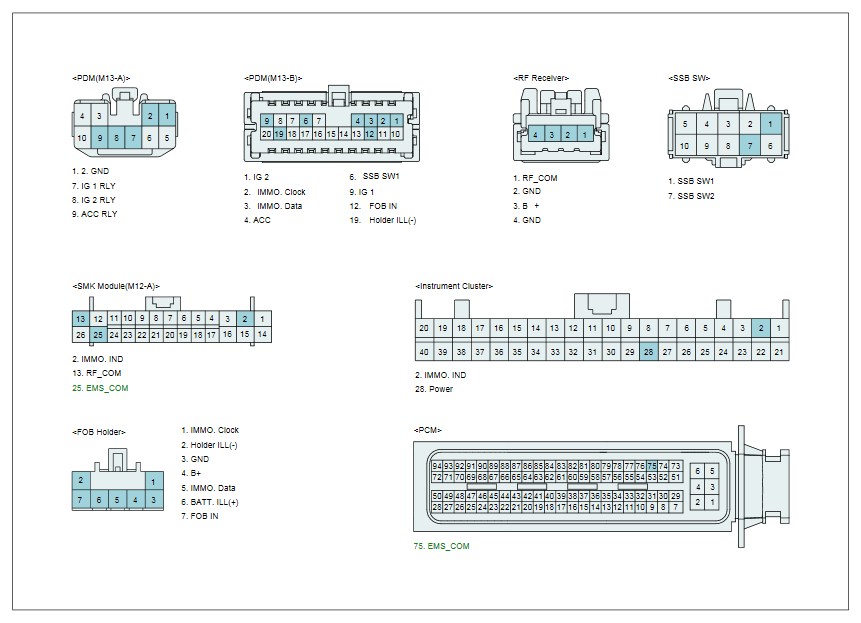

Fig 2: FOB Holder, PCM, Instrument Cluster & SMK Module Connector End Views
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured voltage within specification?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check open or short to signal circuit and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
