Communication Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check for open in harness

Ignition "OFF"
Disconnect GPS Antenna and TMU main harness connector.
Measure resistance between Communication terminal of GPS Antenna harness connector and Communication terminal of TMU harness connector.
Specification: below 1

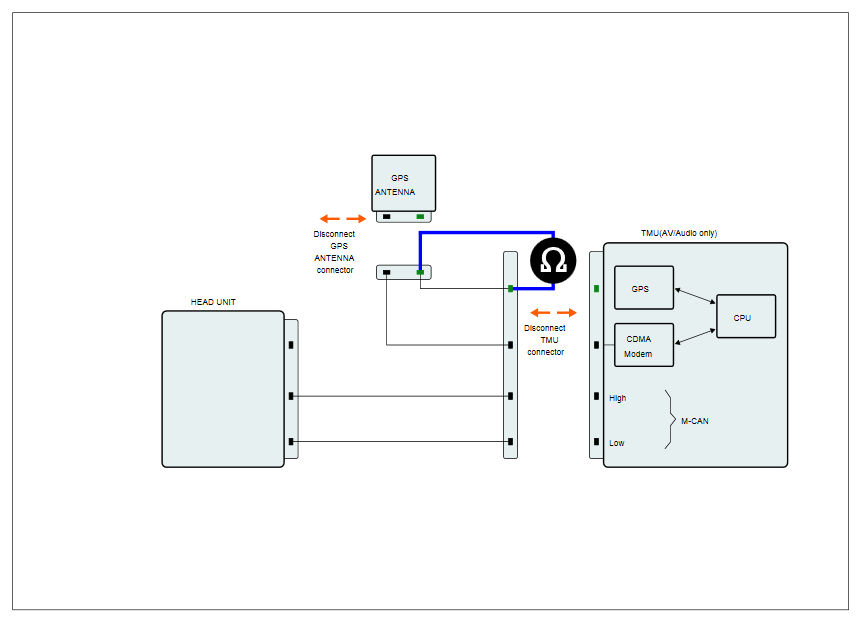

Fig 1: Measuring Resistance Between GPS Antenna Harness Connector And TMU Harness Connector Communication Terminal
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured resistance within specifications?
YES
- Go to next procedure.
NO
- Check for open in harness & Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ Check short to ground in harness

Ignition "OFF".
Disconnect GPS Antenna and TMU main harness connector.
Measure resistance between Communication terminal of TMU harness connector and chassis ground.
Specification: Infinity

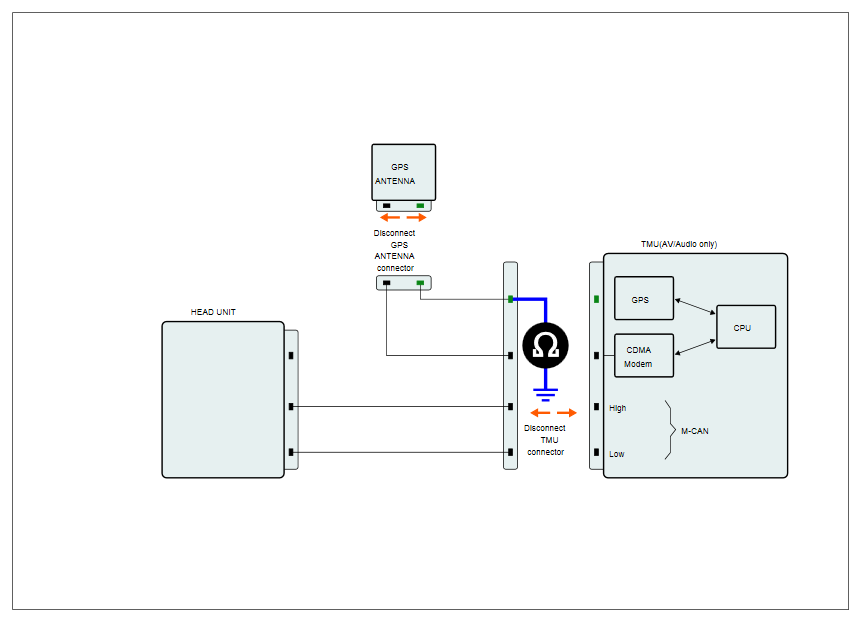

Fig 2: Measuring Resistance Between TMU Harness Connector Communication Terminal And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured resistance within specifications?
YES
- Check GPS antenna & TMU for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- Substitute with a known-good GPS antenna and check for proper operation.
  If the problem is corrected, replace GPS antenna and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- Substitute with a known-good TMU and check for proper operation.
  If the problem is corrected, replace TMU and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Check for open or contact resistance in ground harness.
  Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
