Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

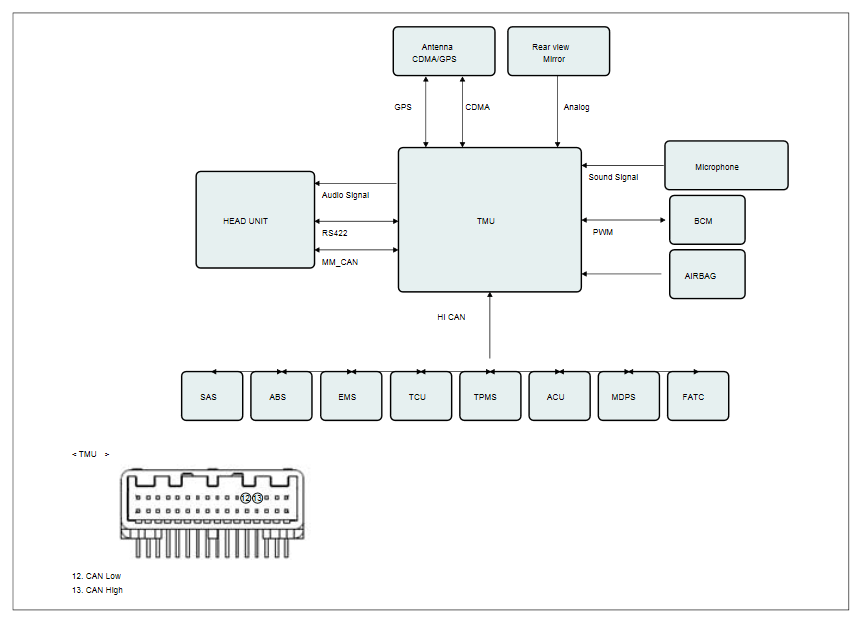

Fig 1: Telematics Unit Diagnostic Block Diagram With Connector End View
G10603300Courtesy of HYUNDAI MOTOR AMERICA
