Section 78 (Telematics Unit Diagnosis (HEV))
>>
DTC B1690: Network Fail (Hi-CAN)
>>
General Information
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

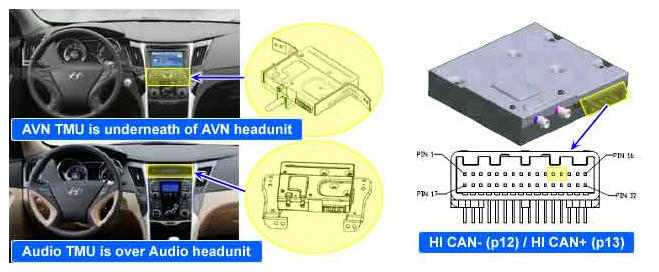

Fig 1: Identifying Telematics Unit & HI CAN Circuit Identification
Courtesy of HYUNDAI MOTOR AMERICA
