Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

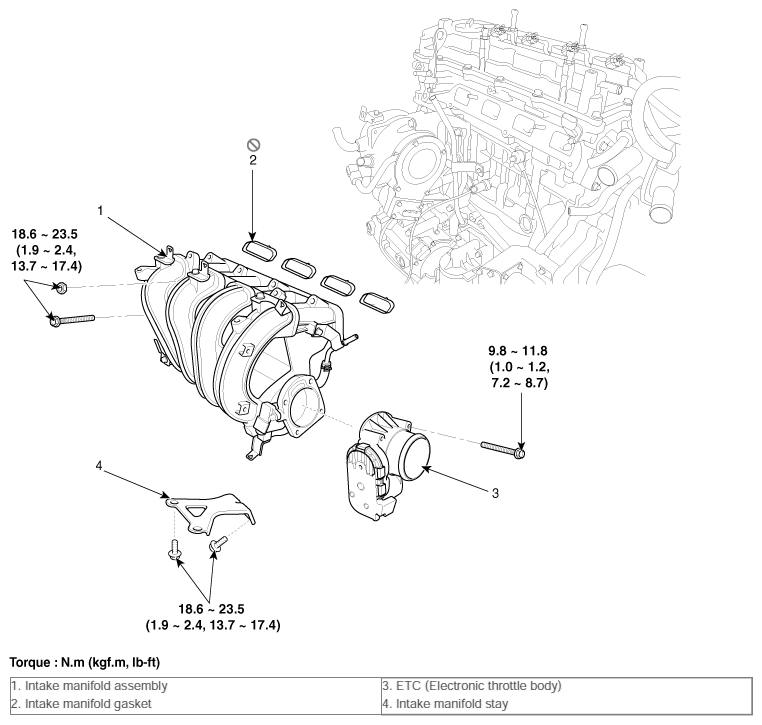

Fig 1: Identifying Intake Manifold Components With Torque Specifications
G10588436Courtesy of HYUNDAI MOTOR AMERICA
