Scantool Diagnostics

WARNING: This page is about a different variant/trim than selected.

Connect scantool with Diagnostic Connector.
Perform vehicle selection and Level Initialization with scantool as follows. And then, check "Actuator" parameter on scantool (It must be unloaded vehicle condition)
Specification: 80% ± 2%

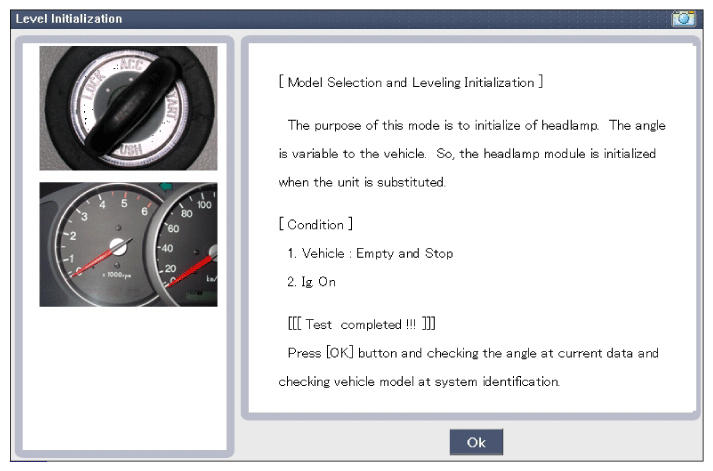

Fig 1: Screen Display - Vehicle Selection And Level Initialization
Courtesy of HYUNDAI MOTOR AMERICA

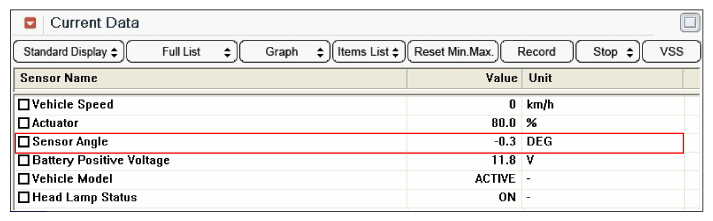

Fig 2: Screen Display - Key ON-Normal Current Data
Courtesy of HYUNDAI MOTOR AMERICA
Are "Vehicle selection & Level Initialization" and current data normal?
YES
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good "AHLS-ECM (SENSOR)" and check for proper operation. If the problem is corrected, replace "AHLS-ECM (SENSOR)" and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- After its repair done, Perform the lamp actuation by GDS in order to verify its normal operation.
CAUTION: Perform Vehicle Selection and Level Initialization with scantool if AHLS ECM is replace. (Auto Levelling Sensor)

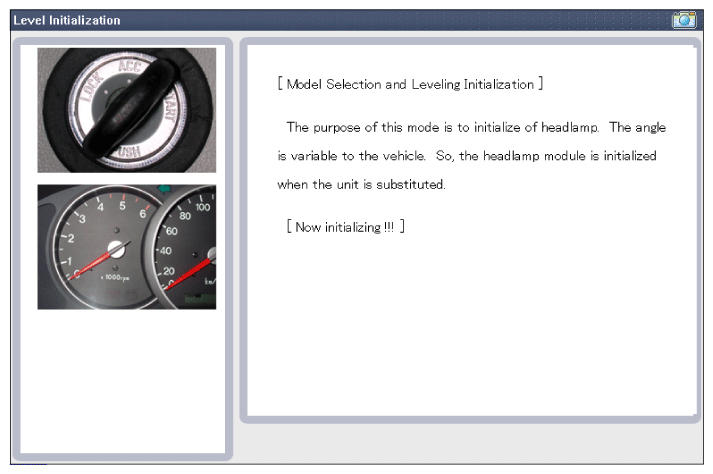

Fig 3: Screen Display - Vehicle Selection And Leveling Initialization 1
Courtesy of HYUNDAI MOTOR AMERICA

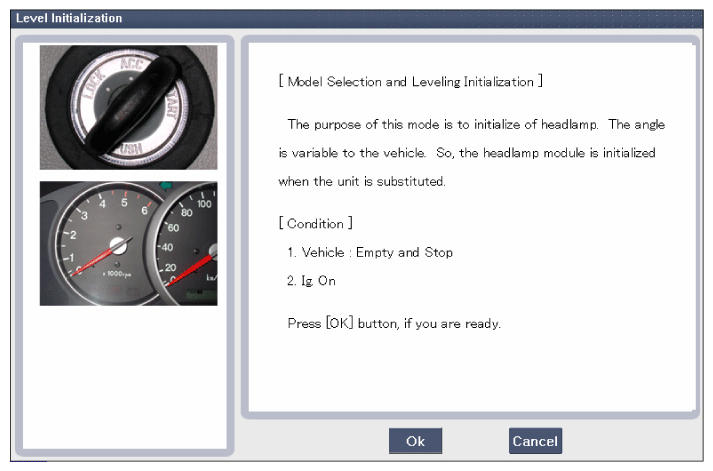

Fig 4: Screen Display - Vehicle Selection And Leveling Initialization 2
Courtesy of HYUNDAI MOTOR AMERICA

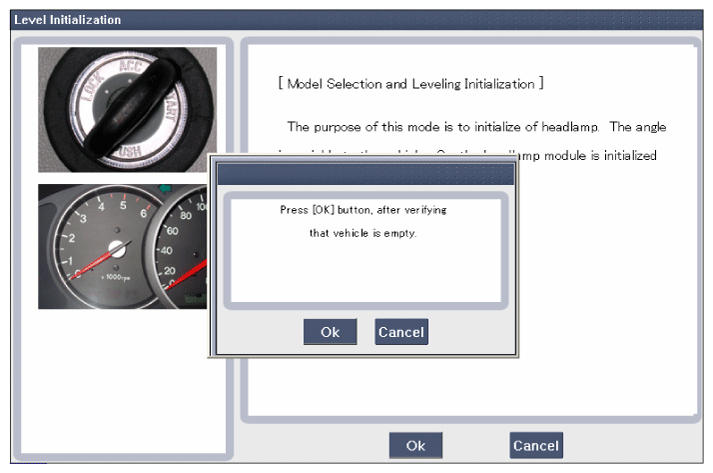

Fig 5: Screen Display - Vehicle Selection And Leveling Initialization 3
Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Screen Display - Vehicle Selection And Leveling Initialization 4
Courtesy of HYUNDAI MOTOR AMERICA
