Section 76 (Auto Headlamp Leveling System Diagnosis (HEV))
>>
DTC C1604: ECU Fault
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

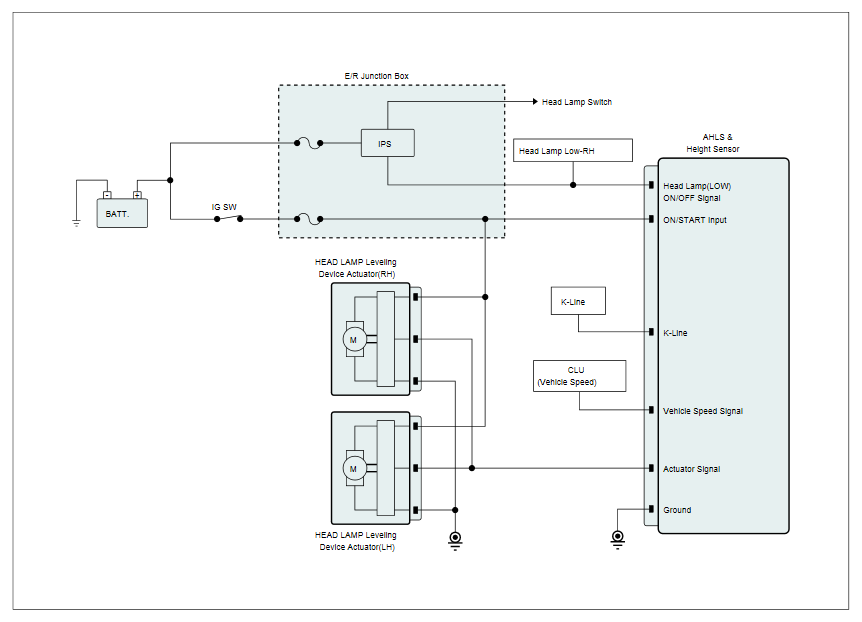

Fig 1: E/R Junction Box, AHLS ECU & Height Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
