Scantool Diagnostics

WARNING: This page is about a different variant/trim than selected.
  1. Connect scantool with Diagnostic Connector.
  2. Engine "ON" and Turn on the auto head light system.
  3. Check "HEAD LAMP status" parameter on Scantool.

    Specification:  When Head Lamp is ON: "ON"

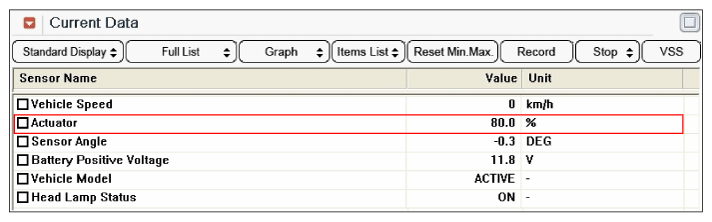

    Fig 1: Screen Display - Head Lamp Status
    G10602909Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the current data normal?

    YES

    • This is a intermittent problem caused by poor contact of component or Control Unit.
    • Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector.
    • Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
