Scantool Diagnostics
WARNING: This page is about a different variant/trim than selected.
- Connect scantool with Diagnostic Connector.
- Engine "ON" and Turn on the auto head light system.

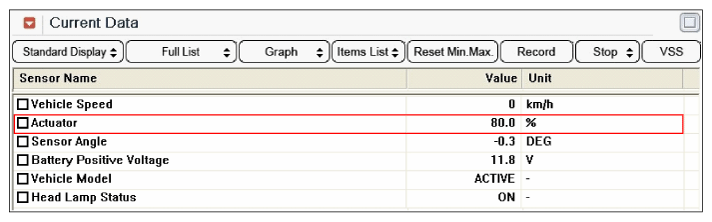

- Check "Actuator" parameter on scantool. (It should be checked while the vehicle is unloaded condition)
Specification: 80% ± 2%
- Is parameter displayed within the Specification?
YES
- This is a intermittent problem caused by poor contact of component or Control Unit.
- Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector.
- Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
