Section 76 (Auto Headlamp Leveling System Diagnosis (HEV))
>>
DTC C1212: Vehicle Speed Sensor Failure
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

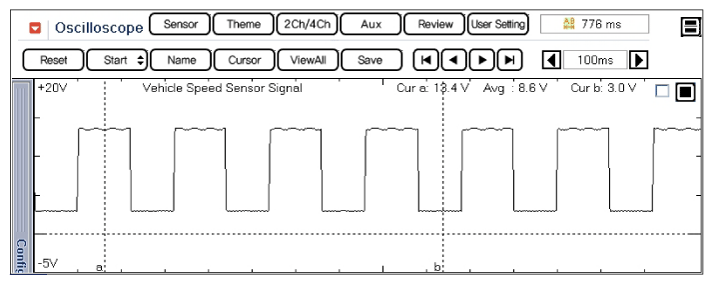

Fig 1: Screen Display - Signal Waveform At Driving Condition That Changes Frequency According To Vehicle Speed (6 KM/H)
Courtesy of HYUNDAI MOTOR AMERICA

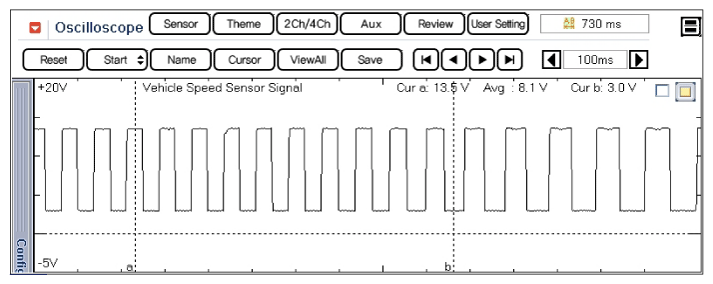

Fig 2: Screen Display - Signal Waveform At Driving Condition That Changes Frequency According To Vehicle Speed (10 KM/H)
Courtesy of HYUNDAI MOTOR AMERICA
