Section 73 (Power Steering System Diagnosis (HEV))
>>
DTC C1705: EPS Module (Pre-Charge Circuit) Malfunction
>>
General Information
>>
Components Location
Components Location
WARNING:
This page is about a different variant/trim than selected.

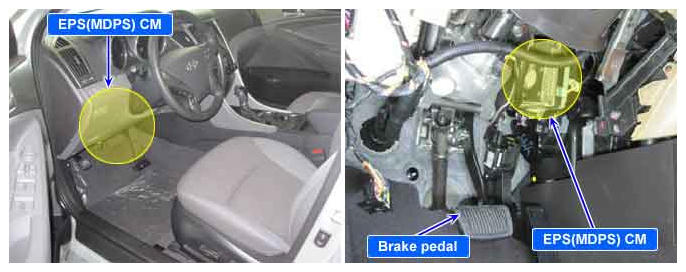

Fig 1: EPS (MDPS) And Brake Pedal Components Location
Courtesy of HYUNDAI MOTOR AMERICA
