Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

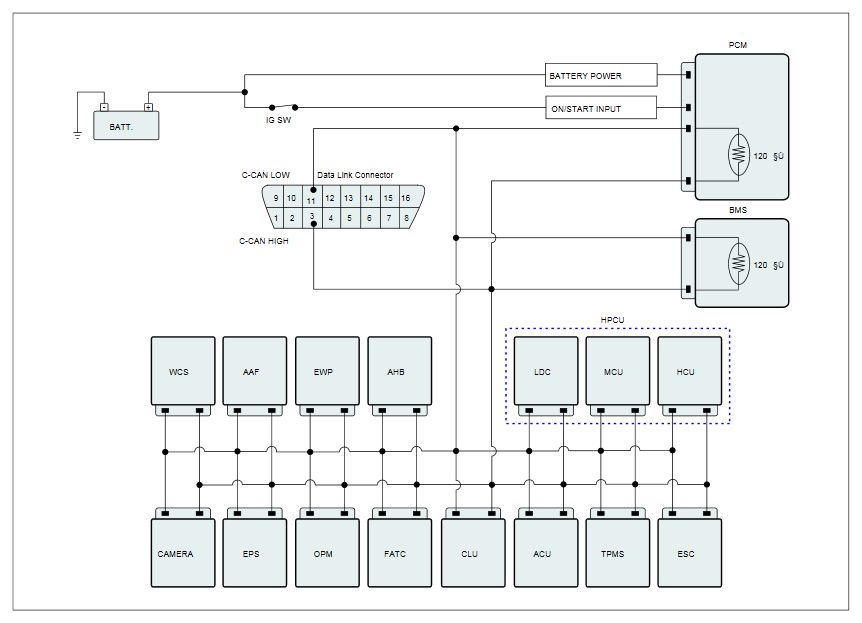

Fig 1: Data Link Connector Diagnostic Circuit Diagram
G10603275Courtesy of HYUNDAI MOTOR AMERICA

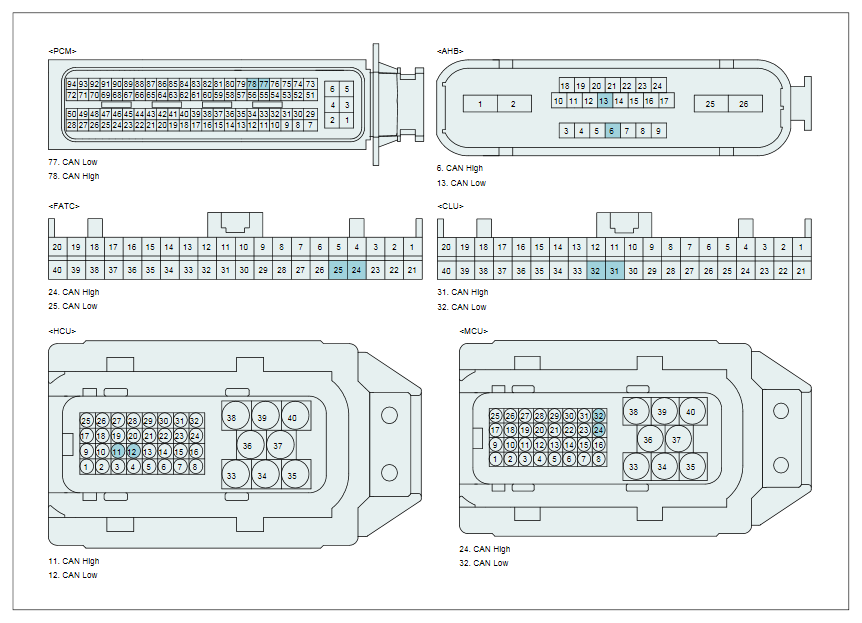

Fig 2: FATC Connector Terminals
G10603276Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: Camera Connector Terminals
G10603277Courtesy of HYUNDAI MOTOR AMERICA
