Section 73 (Power Steering System Diagnosis (HEV))
>>
DTC C1611: CAN Time-Out ECM
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

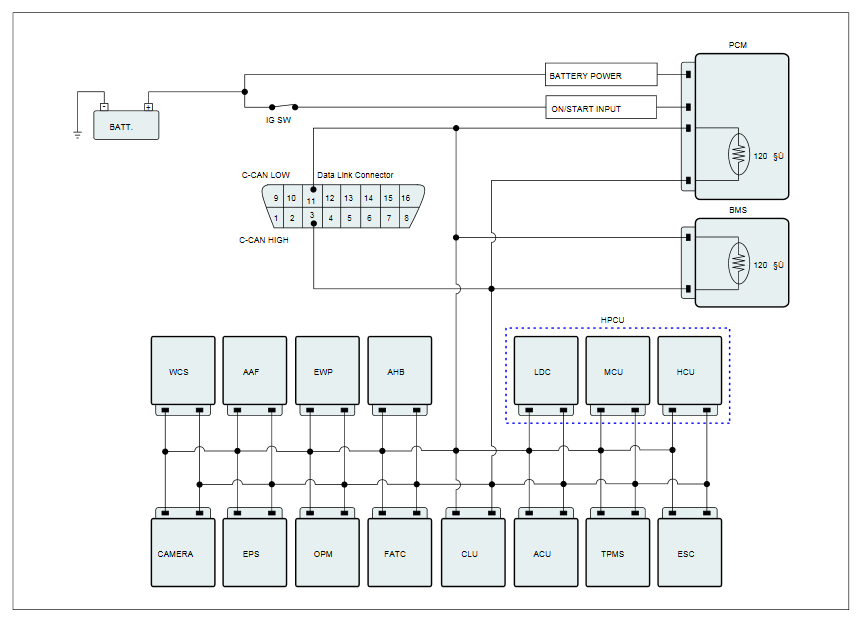

Fig 1: Data Link Connector Diagnostic Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA

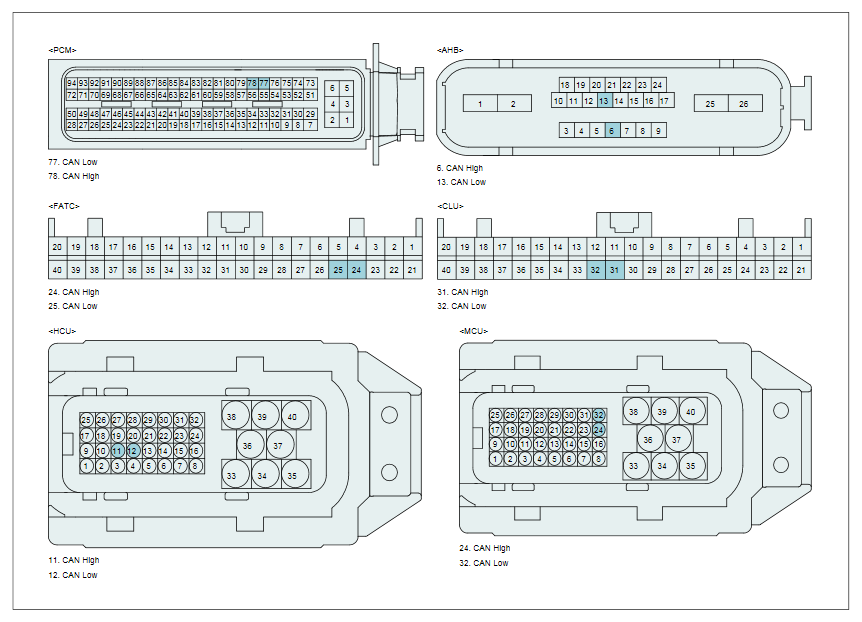

Fig 2: CAN Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA

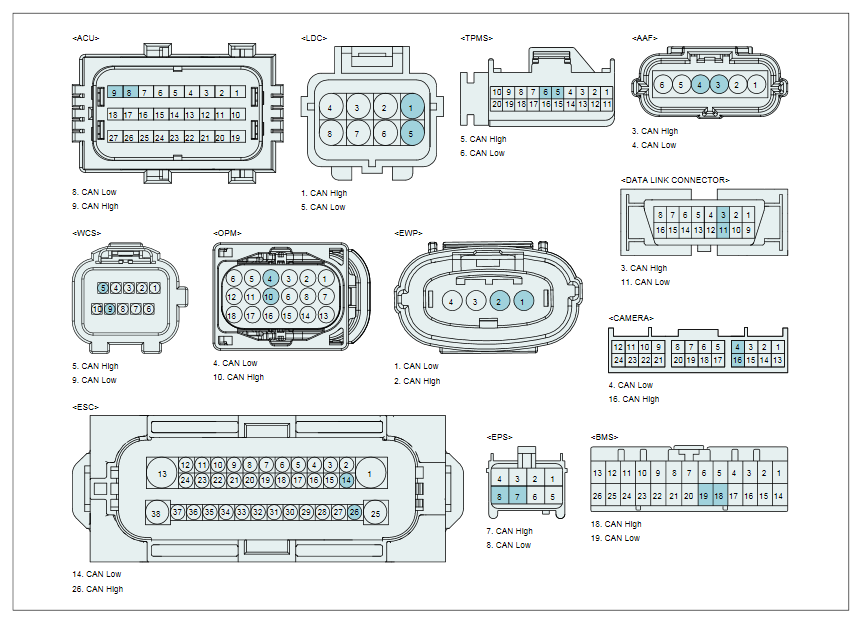

Fig 3: Data Link Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
