Section 73 (Power Steering System Diagnosis (HEV))
>>
DTC C1611: CAN Time-Out ECM
>>
General Information
>>
Components Location
Components Location
WARNING:
This page is about a different variant/trim than selected.

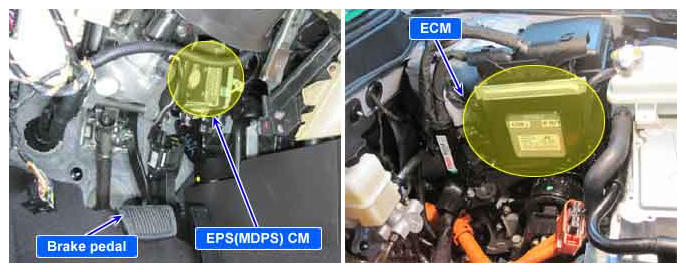

Fig 1: Brake Pedal, ECM And EPS (Motor Driving Power Steering) Components Location
Courtesy of HYUNDAI MOTOR AMERICA
