Section 73 (Power Steering System Diagnosis (HEV))
>>
DTC C1109: IGN Signal Error
>>
General Information
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

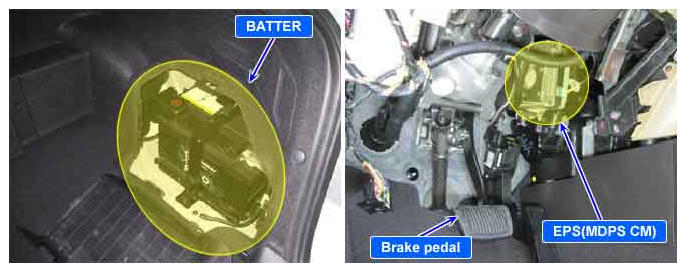

Fig 1: Battery, EPS (MDPS CM) And Brake Pedal Component Location
Courtesy of HYUNDAI MOTOR AMERICA
