Selection Of Engine Oil

WARNING: This page is about a different variant/trim than selected.

Recommendation: 5W-20/GF4&SM

(If not available, refer to the recommended API, ILSAC and ACEA classification.)

Classification:

SAE viscosity grade: Refer to the recommended SAE viscosity number.

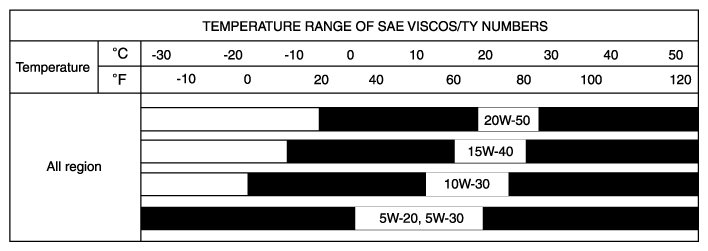

Fig 1: Temperature Range Of SAE Viscosity Numbers Chart

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: For best performance and maximum protection of all types of operation, select only those lubricants which:

Satisfy the requirement of the API or ILSAC classification.
Have proper SAE grade number for expected ambient temperature range.
Lubricants that do not have both an SAE grade number and API or ILSAC service classification on the container should not be used.
