Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

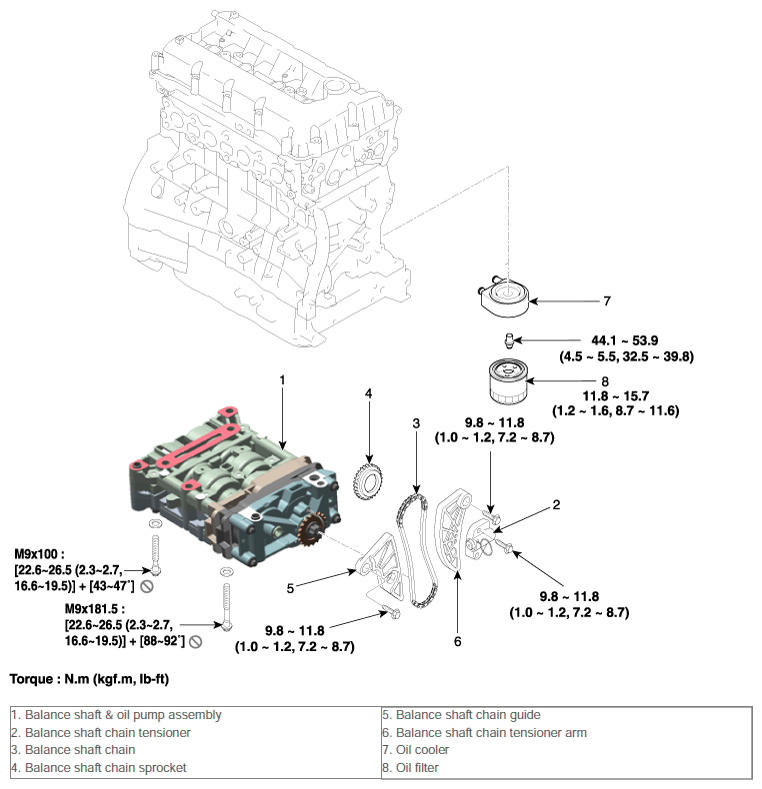

Fig 1: Identifying Balance Shaft And Oil Pump Components With Torque Specifications
G10588394Courtesy of HYUNDAI MOTOR AMERICA
