Section 67 (Fuel Delivery System (HEV))
>>
Components and Components Location
>>
Components Location
Components Location
WARNING:
This page is about a different variant/trim than selected.

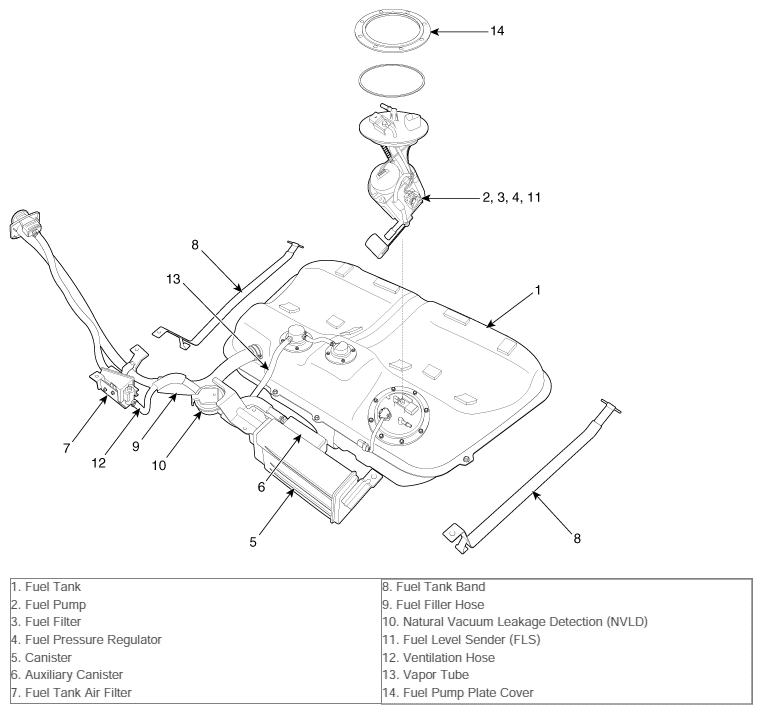

Fig 1: Identifying Fuel Delivery System Components
Courtesy of HYUNDAI MOTOR AMERICA
