Section 65 (Automatic Transaxle System Diagnosis (HEV))
>>
DTC U1002: Lost Communication With ECM (H-CAN)
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

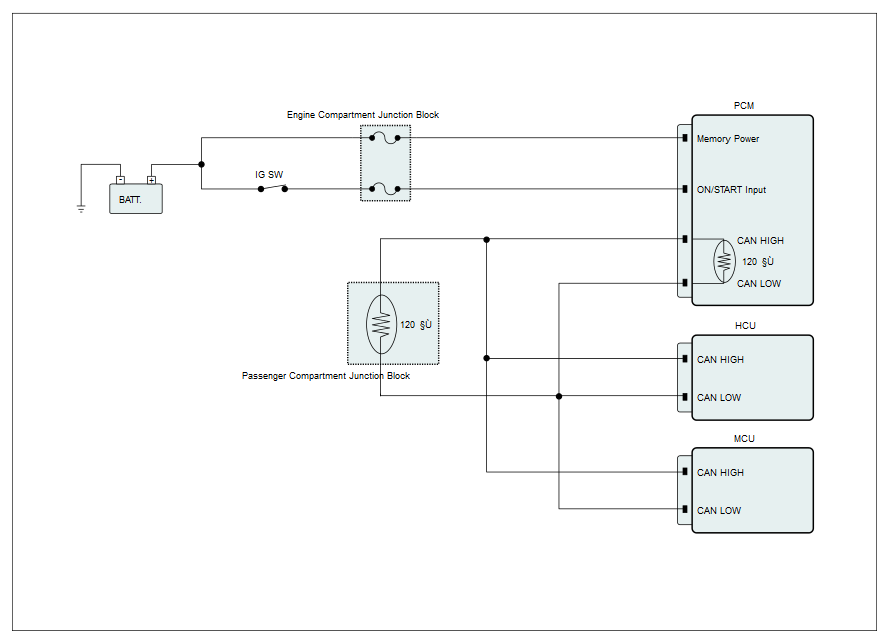

Fig 1: Control Units Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
