Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect scantool to Data Link Connector (DLC).
  2. Engine "ON".
  3. Monitor the "CAN Communication Service Data (Engine clutch status, Blue Drive SW)" parameters on the GDS.

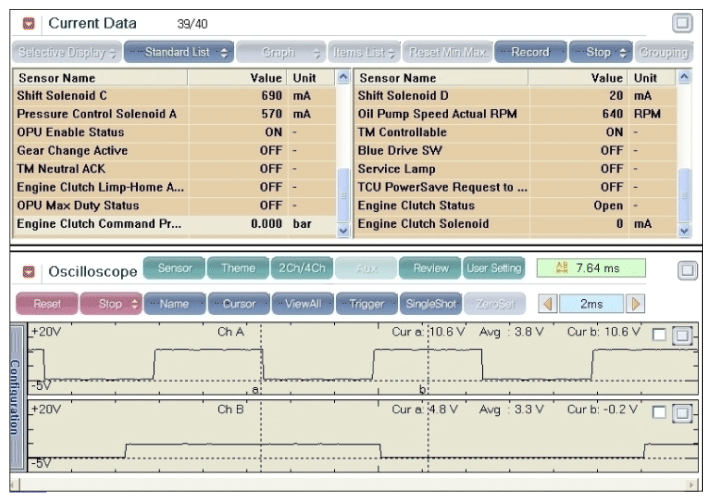

    Fig 1: Scantool Display - Signal Waveform And Current Data (Channel A: OPU Status, Channel B: Hall Signal (Normal Situation))
    G10603833Courtesy of HYUNDAI MOTOR AMERICA

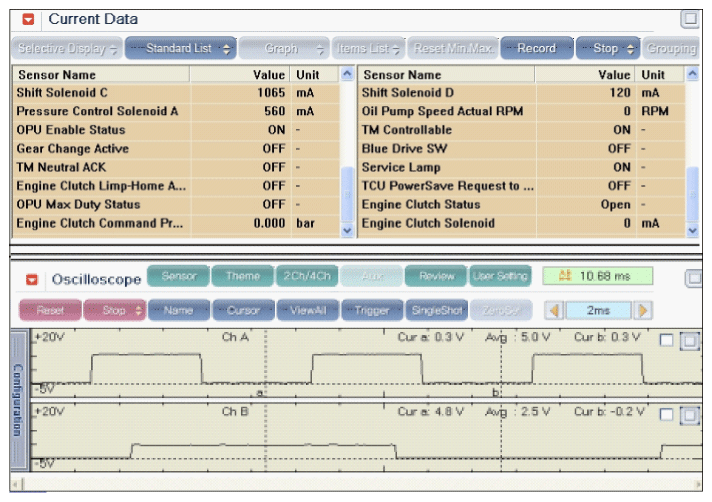

    Fig 2: Scantool Display - Signal Waveform And Current Data (Channel A: OPU Status, Channel B: Hall Signal (CAN Line Error))
    G10603834Courtesy of HYUNDAI MOTOR AMERICA
  4. Is measured current data within specific?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM's memory was not cleared.

      Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
