Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect scantool to Data Link Connector (DLC).
  2. Engine "ON".
  3. Monitor the "CAN Communication Service Data" parameters on the GDS.

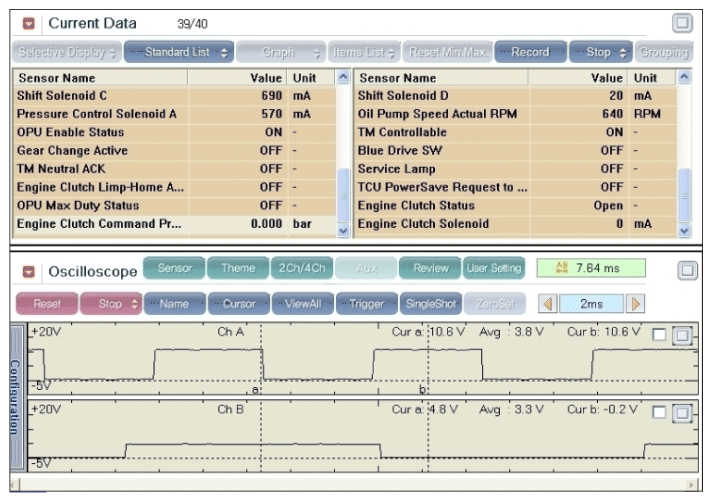

    Fig 1: Scantool Display - Signal Waveform And Current Data (Channel A: OPU Status, Channel B: Hall Signal (Normal Situation))
    G10603818Courtesy of HYUNDAI MOTOR AMERICA

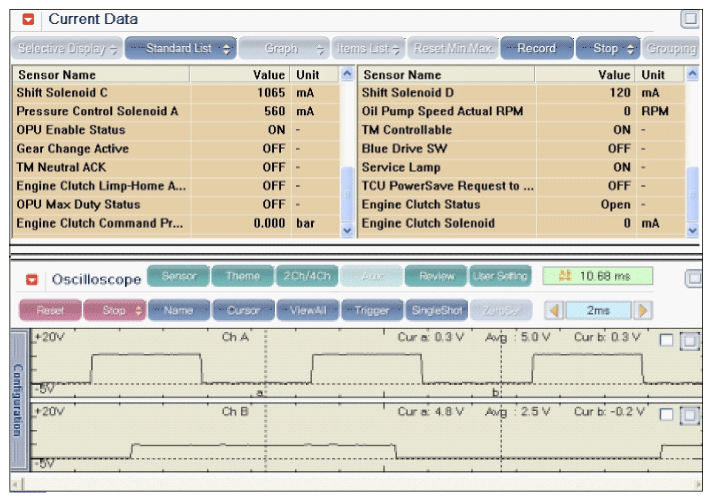

    Fig 2: Scantool Display - Signal Waveform And Current Data (Channel A: OPU Status, Channel B: Hall Signal (CAN Line Error))
    G10603819Courtesy of HYUNDAI MOTOR AMERICA
  4. Is measured current data within specific?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM's memory was not cleared.

      Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
