Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

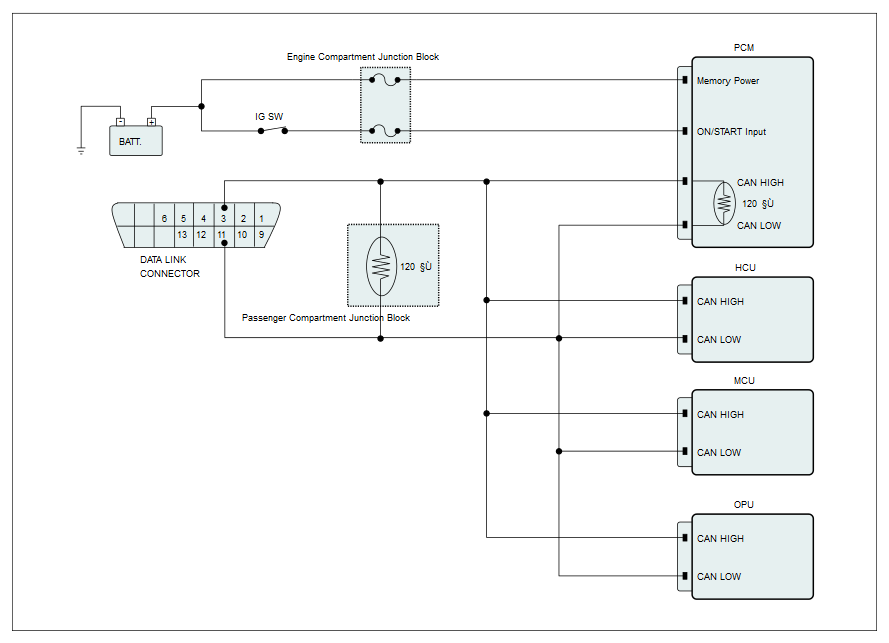

Fig 1: Control Units Circuit Diagram
G10603796Courtesy of HYUNDAI MOTOR AMERICA

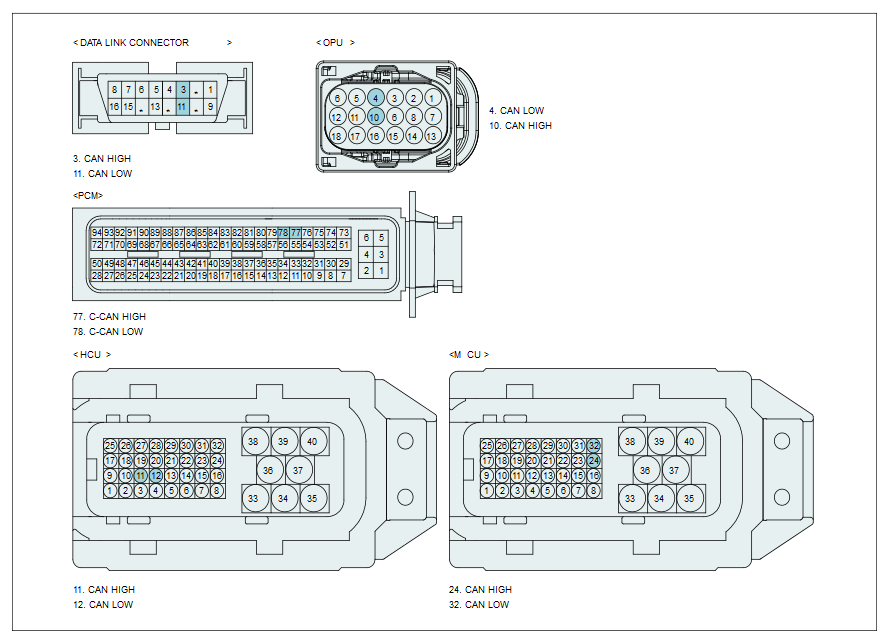

Fig 2: Identifying Control Units Connector Terminals
G10603797Courtesy of HYUNDAI MOTOR AMERICA
