Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

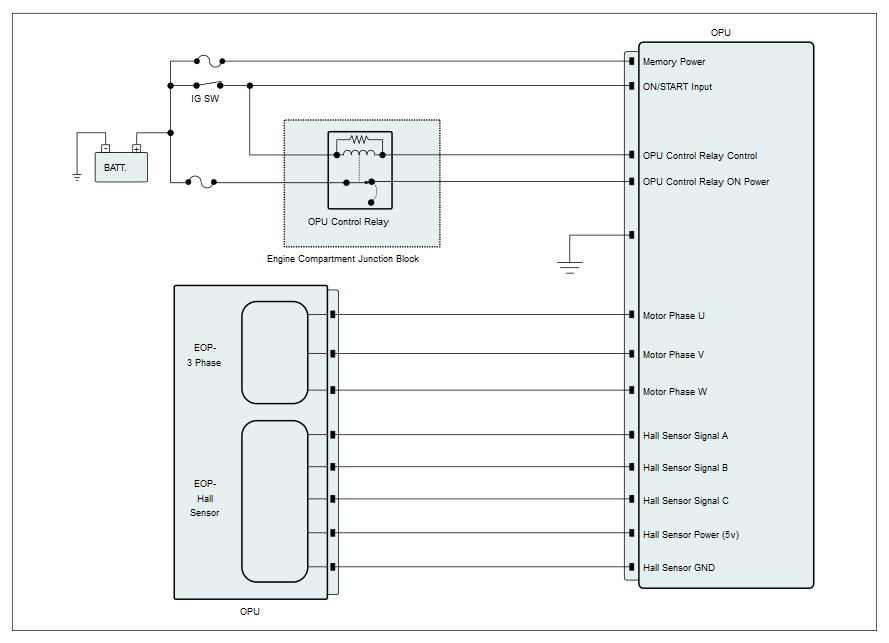

Fig 1: OPI Hall Sensor Circuit Diagram
G10603888Courtesy of HYUNDAI MOTOR AMERICA

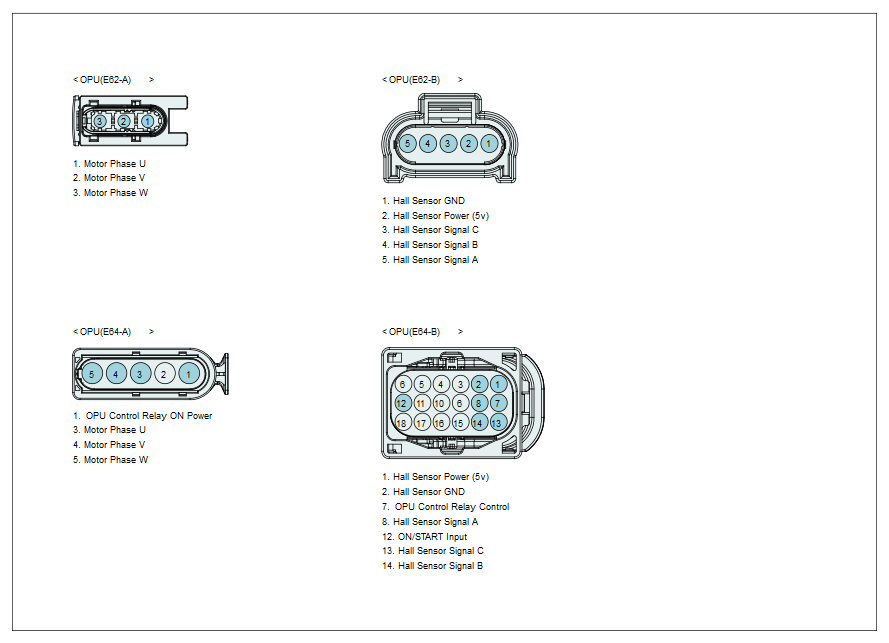

Fig 2: Identifying OPI Hall Sensor Connector Terminals
G10603889Courtesy of HYUNDAI MOTOR AMERICA
