Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

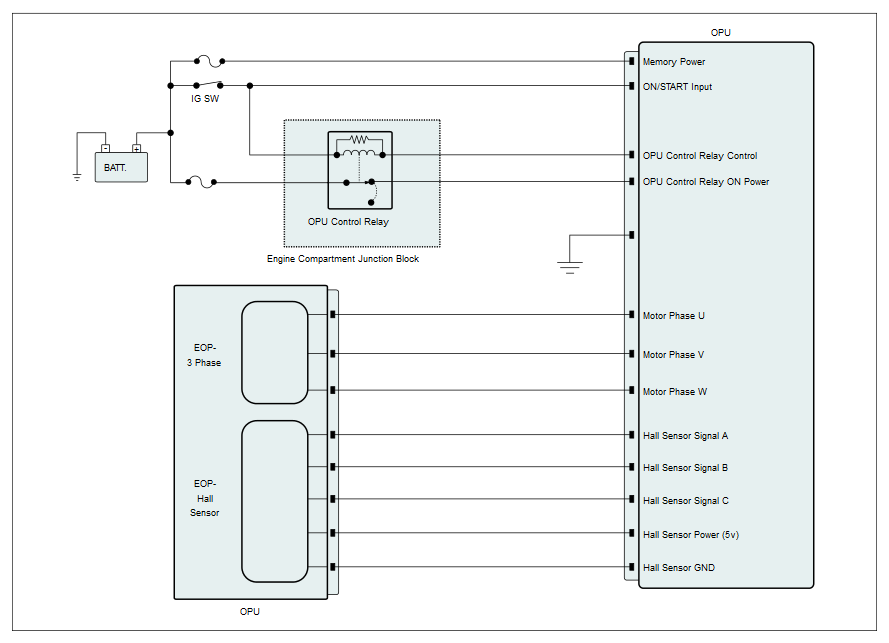

Fig 1: Electric Oil Pump Relay Circuit Diagram
G10603748Courtesy of HYUNDAI MOTOR AMERICA

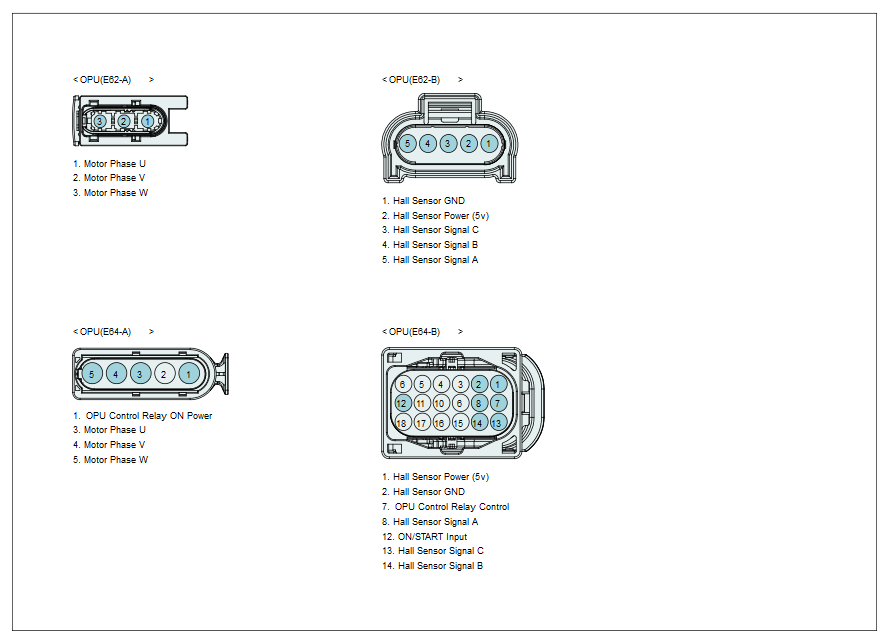

Fig 2: Identifying Electric Oil Pump Relay Connector Terminals
G10603749Courtesy of HYUNDAI MOTOR AMERICA
