Signal Circuit Inspection

■ Open Circuit Inspection

1. IG KEY "OFF".
2. Disconnect "ATM solenoid valve" connector and PCM/TCM connector.
3. Measure resistance between "EC-VFs (EC SV)" terminal of ATM solenoid valve connector and PCM/TCM connector.

   Specification:  Approx. 0 Ω

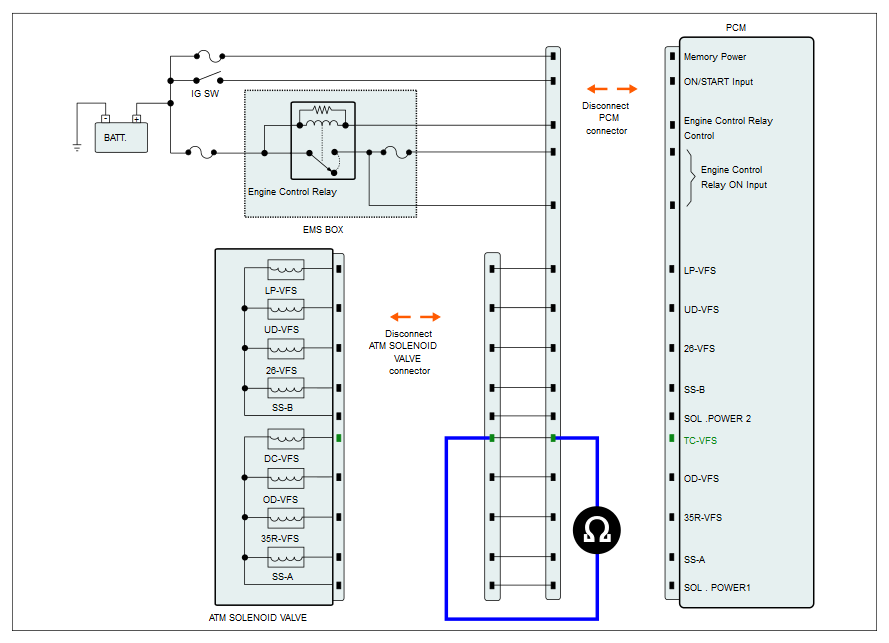

   Fig 1: Measuring Resistance Between EC-VFS (EC SV) Terminal Of ATM Solenoid Valve Connector And PCM/TCM Connector

   Courtesy of HYUNDAI MOTOR AMERICA

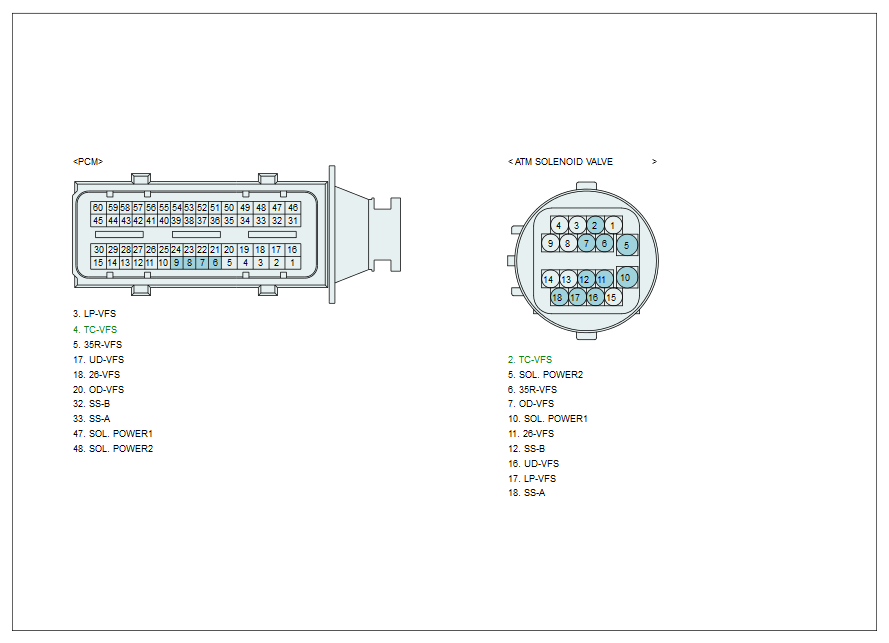

   Fig 2: Identifying ATM Solenoid Valve Connector Terminals

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specification?

   YES

   • Go to next step.

   NO

   • Check circuit open of harness and go to "VERIFICATION VEHICLE REPAIR " procedure.

■ Short Circuit Inspection

1. Ignition "OFF".
2. Disconnect "ATM solenoid valve connector and PCM/TCM connector.
3. Measure a resistance between "Pressure control solenoid valve (EC-VFS)" terminal of ATM solenoid valve connector and chassis ground.

   Specification:  Infinite

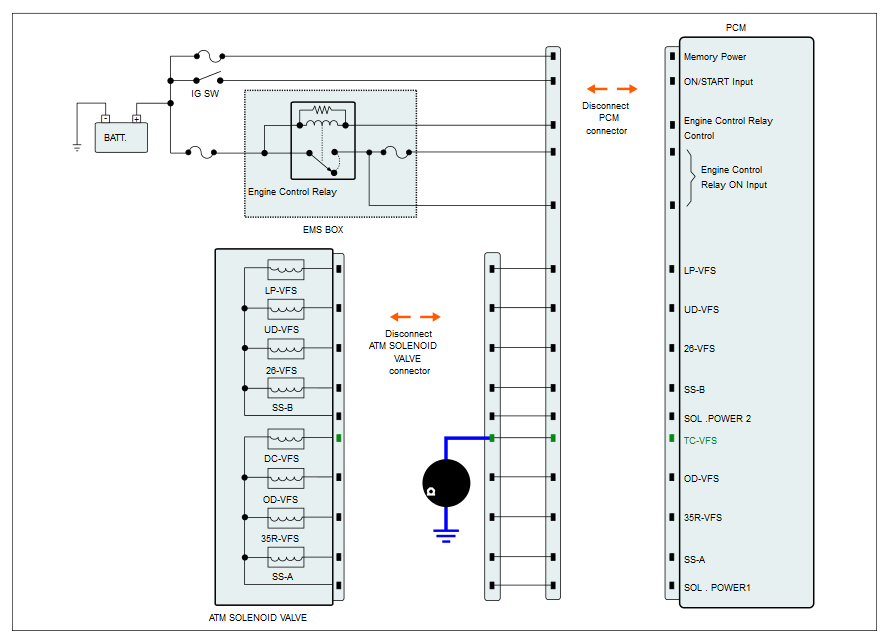

   Fig 3: Measuring Resistance Between Pressure Control Solenoid Valve (EC-VFS) Terminal Of ATM Solenoid Valve Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
   Fig 4: Identifying ATM Solenoid Valve Connector Terminals

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specifications?

   YES

   • Go to "COMPONENT INSPECTION " procedure.

   NO

   • Check harness for short circuit. Repair as necessary and go to "VERIFICATION VEHICLE REPAIR " procedure.
