Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

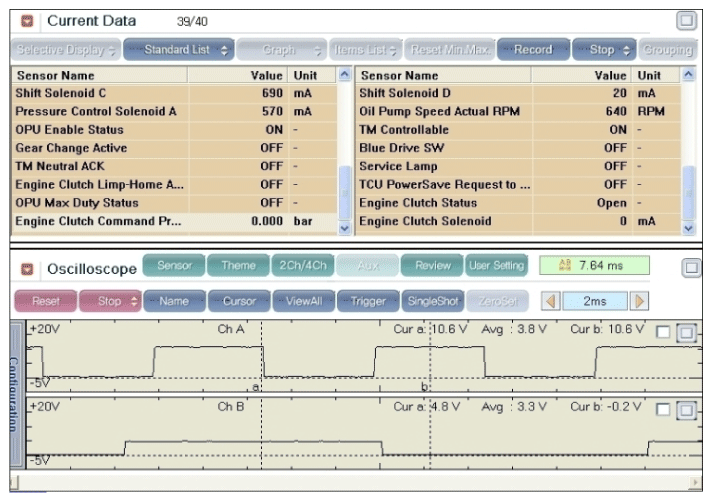

Fig 1: Scantool Display - Signal Waveform And Current Data (Channel A: OPU Status, Channel B: HALL Signal (Normal Situation))

Courtesy of HYUNDAI MOTOR AMERICA

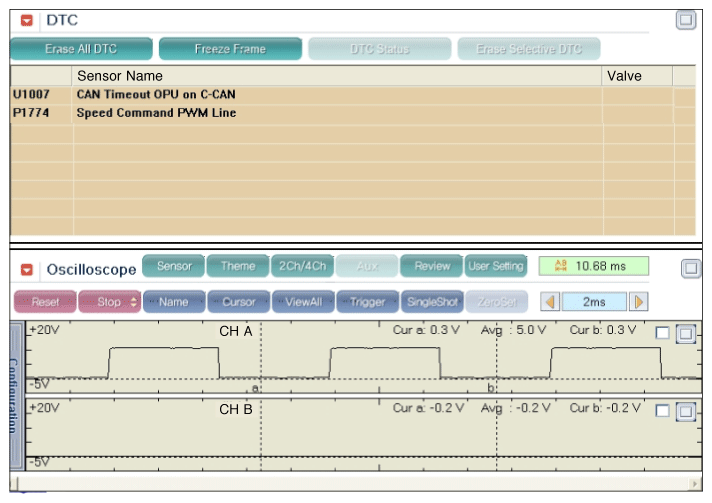

Fig 2: Scantool Display - Signal Waveform And Current Data (Channel A: OPU Status, Channel B: Hall Signal (PWM Motor Speed Line Error And CAN Line Error Too))

Courtesy of HYUNDAI MOTOR AMERICA

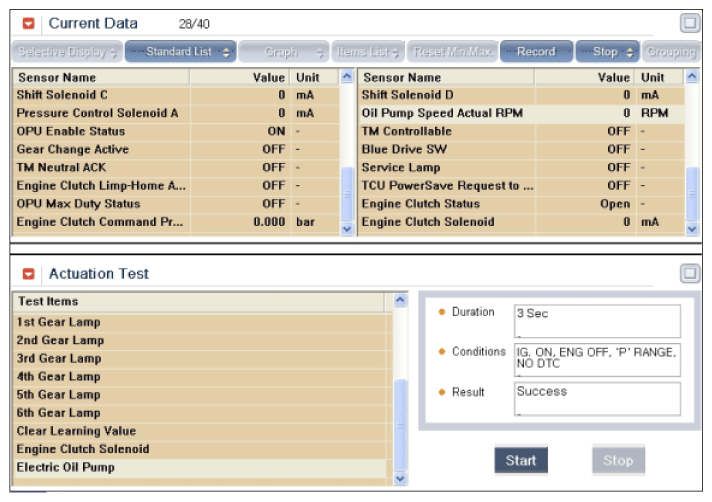

Fig 3: Scantool Display - Current Data And Actuation Test (Number Of Oil Pump At Key On Situation)

Courtesy of HYUNDAI MOTOR AMERICA

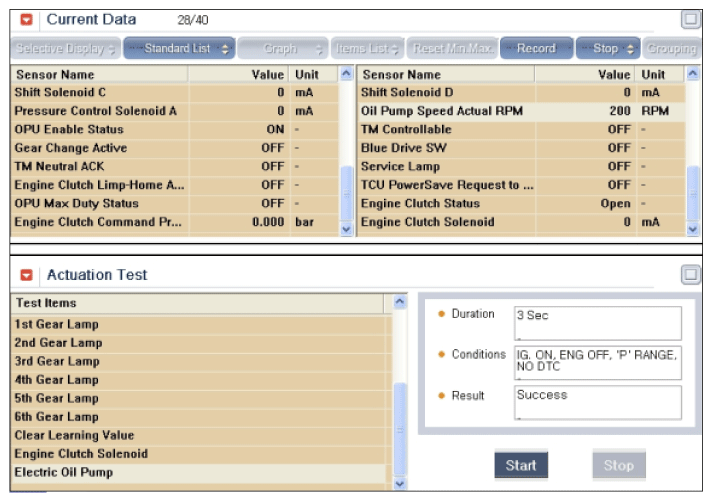

Fig 4: Scantool Display - Current Data And Actuation Test (Number Of Oil Pump When Driven Compulsory)

Courtesy of HYUNDAI MOTOR AMERICA

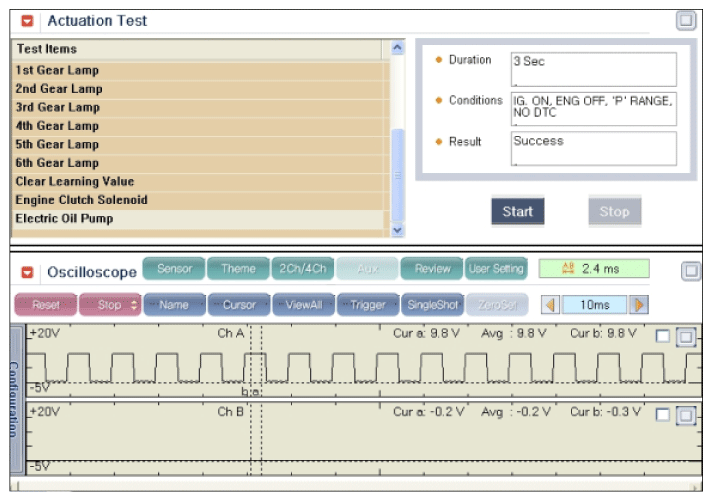

Fig 5: Scantool Display - Signal Waveform And Actuation Test (Channel A: OPU Status, Channel B: Hall Signal (At Key On Situation))

Courtesy of HYUNDAI MOTOR AMERICA

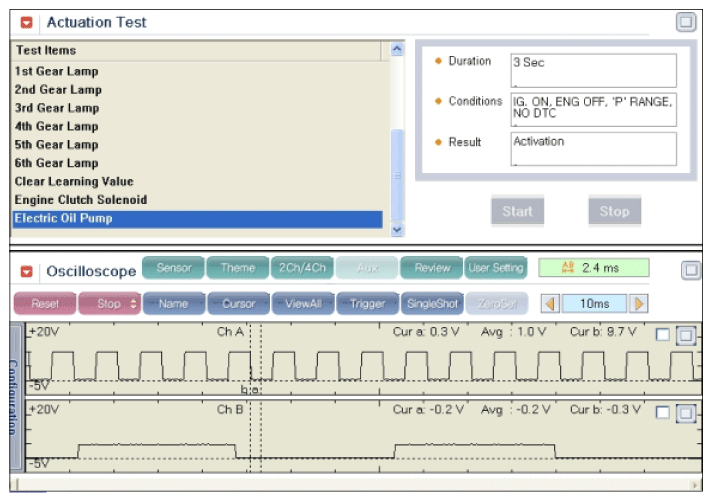

Fig 6: Scantool Display - Signal Waveform And Actuation Test (Channel A: OPU Status, Channel B: Hall Signal (When Driven Compulsory))

Courtesy of HYUNDAI MOTOR AMERICA

Ex) Operation
