Section 65 (Automatic Transaxle System Diagnosis (HEV))
>>
DTC P1776: Electric Oil Pump Hall IC Sensor Failure
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

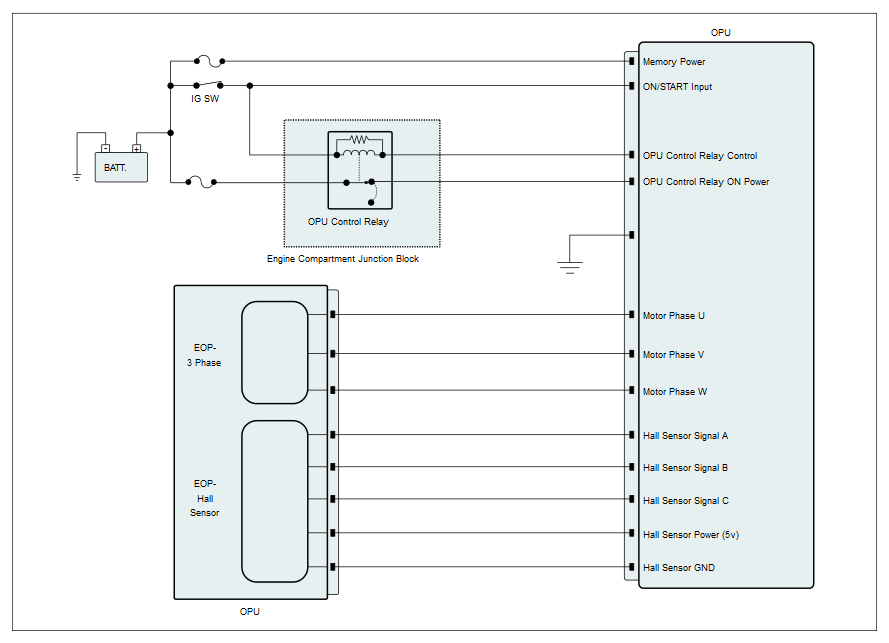

Fig 1: Electric Oil Pump Hall IC Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA

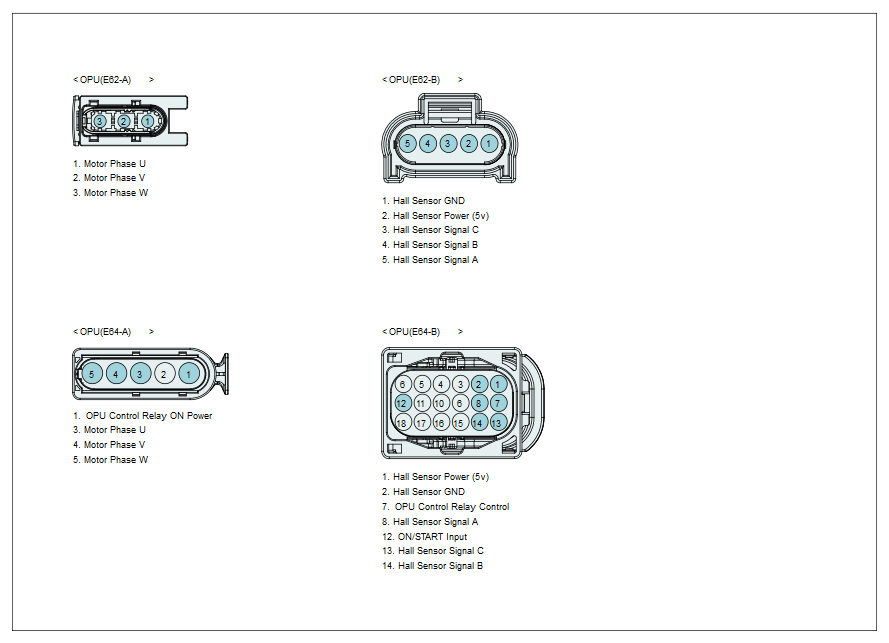

Fig 2: Identifying Electric Oil Pump Hall IC Sensor Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
