Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

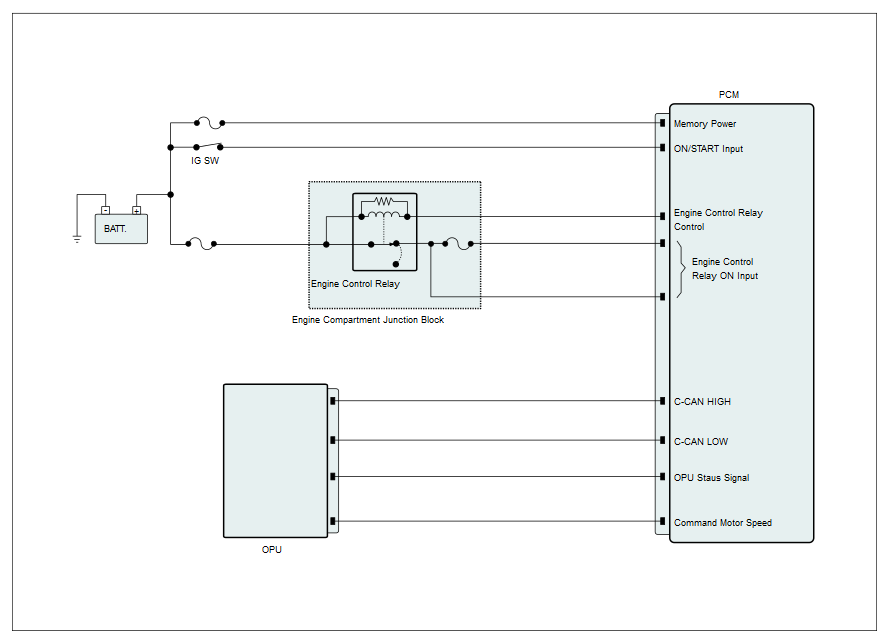

Fig 1: Oil Pump Unit Circuit Diagram
G10603669Courtesy of HYUNDAI MOTOR AMERICA

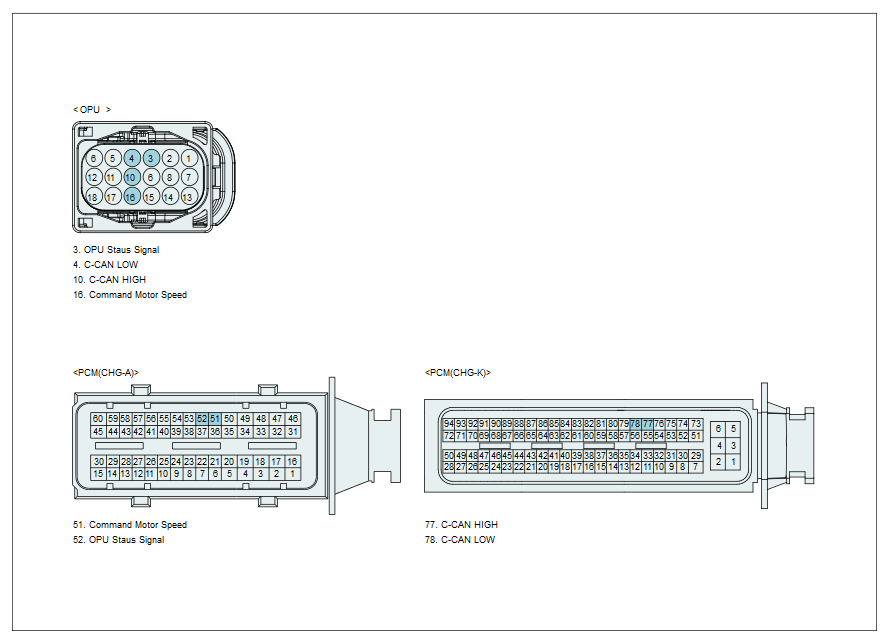

Fig 2: Identifying Oil Pump Unit Connector Terminals
G10603670Courtesy of HYUNDAI MOTOR AMERICA
