Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.

Connect scantool to Data Link Connector (DLC).
Engine "ON".
Driving 1st speed to 6th speed at D-range.
Select "Current Data" mode and monitor "Oil pump speed Actual RPM" parameter current value.
Specification: See below data

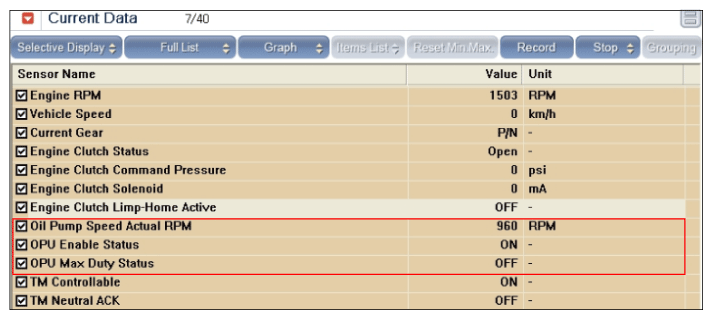

Fig 1: Scantool Display - Current Data (P And N Range)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Scantool Display - Current Data (D Range 1st Gear)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Scantool Display - Current Data (D Range 2nd Gear)
Courtesy of HYUNDAI MOTOR AMERICA

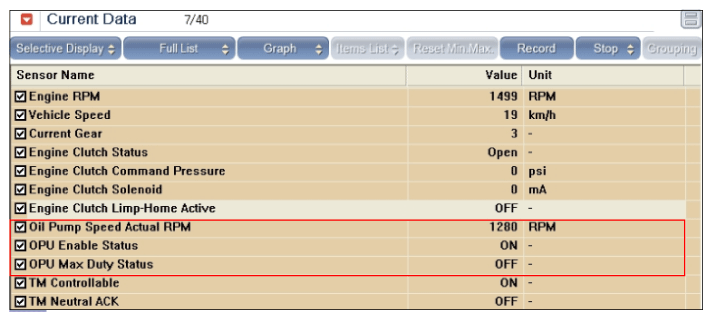

Fig 4: Scantool Display - Current Data (D Range 3rd Gear)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Scantool Display - Current Data (D Range 4th Gear)
Courtesy of HYUNDAI MOTOR AMERICA

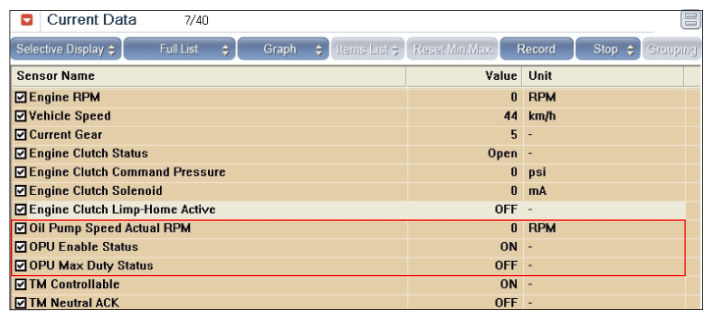

Fig 6: Scantool Display - Current Data (D Range 5th Gear)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Scantool Display - Current Data (D Range 6th Gear)
Courtesy of HYUNDAI MOTOR AMERICA

* OPU may be working or not according to by driving situation and loading condition
Is Oil pump speed Actual RPM value within specific?
YES
- Fault is intermittent caused by poor contact between PCM/TCM and Sensor, and DTC was not cleared.
  Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION VEHICLE REPAIR " procedure.
NO
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
